Ceiling Grid Fan Filter Unit For Clean Room With 1 Year Warranty

China Ceiling Grid Fan Filter Unit For Clean Room With 1 Year Warranty supplier
Ceiling Grid Fan Filter Unit For Clean Room With 1 Year Warranty supplier Ceiling Grid Fan Filter Unit For Clean Room With 1 Year Warranty supplier

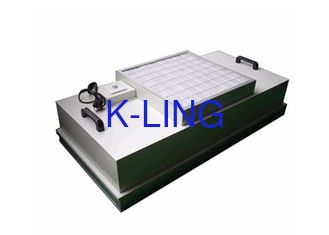

Large Image :  Ceiling Grid Fan Filter Unit For Clean Room With 1 Year Warranty

Product Details:

Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-FFU

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood packing
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Material: Galvanized Filter: Hepa Filter
Size: Customizable Application: Clean Room
Warranty: 1 Year Original: GuangZhou China

Customizable HEPA Filter Fan Filter Unit/ FFU Galvanized Material





Introduction



FFU is air cleaning equipment to supply purified air to the clean room for manufacturing semiconductor, liquid crystal, etc. The installation space is the system ceiling grid. For a large clean room, the number of required FFU is from several hundreds to several thousands.





Advantages


1. The construction period can be shortened;
2. The degree of cleanness from class 10 to class 1000 can be set and the degree of cleanness can be set at each area;
3. Because the back in the ceiling is a low-pressure, the potential of the leakage is low;
4. Bay method or through the wall method is possible by the arrangement of layout of FFU;
5. The velocity of the air flow can be set at each area;
6. Flexible increase or change of the clean room is possible by the arrangement of FFU.





Market prospect


1. To reduce running cost by saving energy;
2. To reduce construction cost and term by thin, light and compact structure;
3. To reduce initial cost by total design of clean room including noise spec. etc;
4. We development FFU units basing upon the above concept to meet all the requirements for constructing, operating and maintaining clean rooms.





Parameter



Fan Filter Unit
Model KEL – FFU920 KEL – FFU1175 KEL – FFU1225
External size:
(W*D*H)mm
920X615X350 1175X575X350 1225X615X350
Air Flow 900m3/h 1000m3/h 1200m3/h
Construction Stainless steel 304/aluminum/galvanized steel/steel with power coated
Air Velocity 0.3 / 0.35 / 0.4 / 0.45 / 0.5 / 0.6 m/s
Control system
  1. Power on/off 2. Control speed Up/Doen
Pressure (pa) 97 (10mm)Aq
Hepa
Filter
Size(mm) 915X610X69 1170X570X69 1220X610X69
Efficiency 99.99% @0.3um
Pressure 180pa @0.45m/s
Power supply 220/110V 50/60HZ
Fan power 123W 123W 175W
Noise 52dB 52dB 52dB





Display

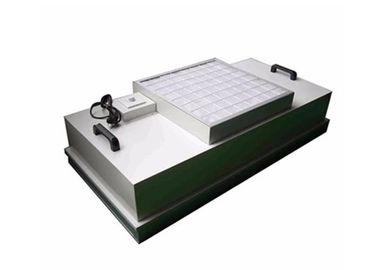

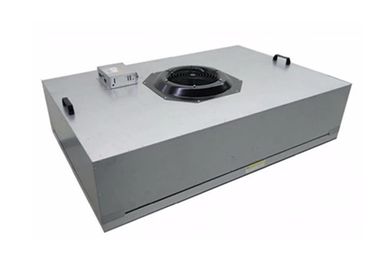

Ceiling Grid Fan Filter Unit For Clean Room With 1 Year Warranty
