| Name: | Fan Filter Unit | Size: | Customizable |
|---|---|---|---|
| Color: | Silver | Usage: | HVAC Equipment |
| Material:: | Glassfiber | Application:: | Cleanroom |
| High Light: | ffu Fan Filter Unit,clean room air filter |
||

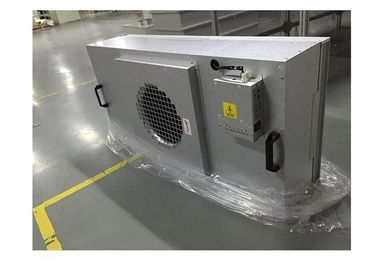

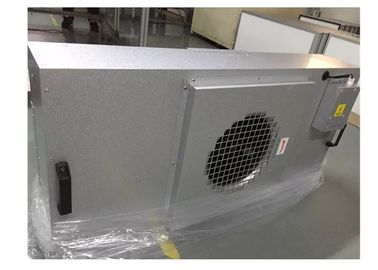

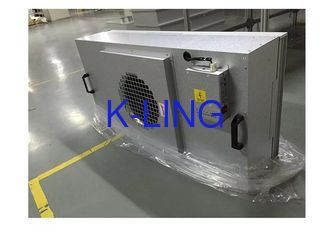

Modular Clean Room Fan Filter Unit/ FFU Efficiency 99.99%@0.3 um
Detail
Fan Filter Unit, consisting of separate HEPA filter and an attached fan housing made of aluminum.
DESIGN:
-- Air intake from above
- Turbulence displacement flow
- Turbulent mixed flow (with optional Lochblechauslass)
- Anodized aluminum body
- Individual sizes are available on request
FILTER:
- G3 prefilter
- Main filter H13, H14, U15, U17 possible
- Filter frame made of aluminum
- Dry seal
- Prot ection grid on both sides
Paramter
| Fan Filter Unit | ||||
| Model | KEL – FFU920 | KEL – FFU1175 | KEL – FFU1225 | |
| External size: (W*D*H)mm |
920X615X350 | 1175X575X350 | 1225X615X350 | |
| Air Flow | 900m3/h | 1000m3/h | 1200m3/h | |
| Construction | Stainless steel 304/aluminum/galvanized steel/steel with power coated | |||
| Air Velocity | 0.3 / 0.35 / 0.4 / 0.45 / 0.5 / 0.6 m/s | |||
| Control system |
|
|||
| Pressure (pa) | 97 (10mm)Aq | |||
| Hepa Filter |
Size(mm) | 915X610X69 | 1170X570X69 | 1220X610X69 |
| Efficiency | 99.99% @0.3um | |||
| Pressure | 180pa @0.45m/s | |||
| Power supply | 220/110V 50/60HZ | |||
| Fan power | 123W | 123W | 175W | |
| Noise | 52dB | 52dB | 52dB | |
