SUS 304 Frame Soft Wall Clean Room GMP Standard For Pharmaceutical Factory
Introduction
1. With FFU (Fan Filter Unit) as the core, clean booth provides a high level of cleanliness. It is a good option to create a cleaner space within an existing normal room or a room with low-level of cleanliness.
2. Easy installation, low cost, modularized design and easy upgrading
Application
LCM, CMOS Camera Module, Touch Play, Optical Module, FILM, Biological Pharmacy, Packing,Food
Main Features
(1) Assembly structure designed, easy installation and easily moved
(2) Directional wheels can be installed, suitable for small building and high cleanliness area;
(3) Modular design: clean booth can be as small as several square meters and can be as large as hundreds of square meters
(4) It has large useful and effective area; while compared with traditional clean room, it has such features like low investment, high return and stable.
Parameter
Parameter | Softwall Clean Booth | Hardwall Clean Booth | |
Cleanliness | From Class 100 to Class 10,000 | ||
External Dimension | As per requirement | ||
FFU | Dimension | 2'X4' | |
Cabinet Material | Stainless Steel | ||
Power source | 110V/60hz/av/dc, 220V/60HZ/AV/DC | ||
HEPA Filter | H14 Hepa filter | ||
Frame Material | Stainless Steel | ||
Wall Material | Anti-static soft PVC wall 106~109Ω | Anti-static acrylic 106~109Ω | |
Lighting | Lamps | Available in LED and T5 | |
Air condition | As per requirement | Available in constant temperature air conditioner/constant temperature and humidity conditioner |

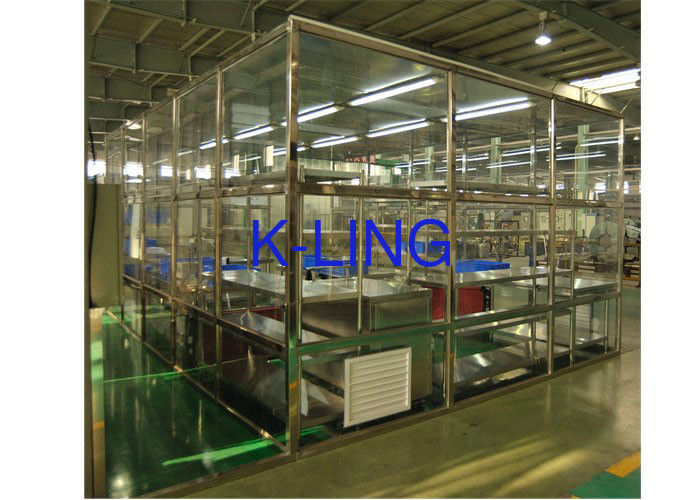

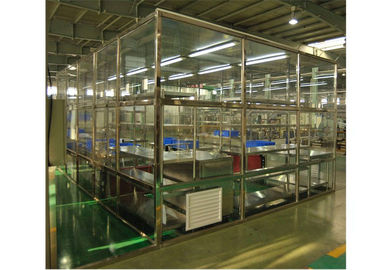

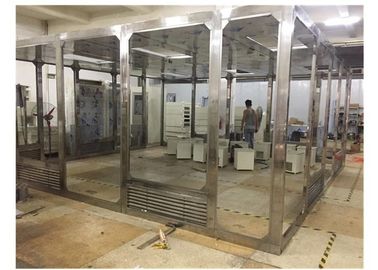

Softwall clean room display
