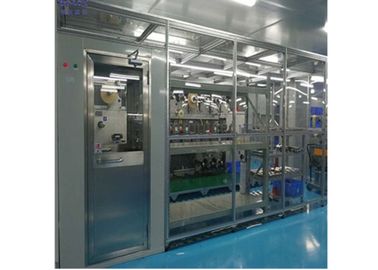

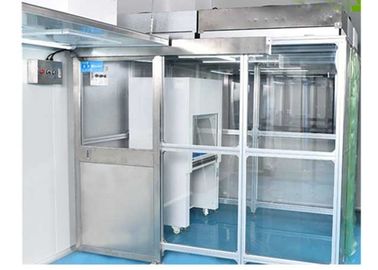

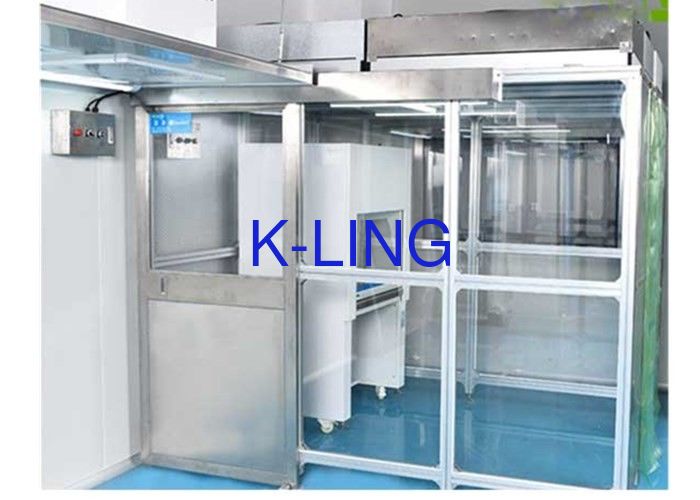

Customizable Stainless Steel Door Softwall Clean Room/ Modular Clean Room
Introduction
A Cleanroom or clean room is an environment, typically used in manufacturing or scientific research, that has a low level of environmental pollutants such as dust, airborne microbes, aerosol particles and chemical vapors. More accurately, a cleanroom has a controlled level of contaimination that is specified by the number of particles per cubic meter at a specified particle size. To give perspective, the ambient air outside in a typical urban environment contains 35,000,000 particles per cubic meter in the size range 0.5um and larger in diameter, corresponding to an ISO9 cleanroom, while an ISO1 cleanroom allows no particles in that size range and only 12 particles per cubic meter of 0.3um and smaller.
For clean room doors, we have many styles, this product uses stainless steel door. The open way we have automatic sensing and manual door opening. Stainless steel doors are highly resistant to corrosion and abrasion. It is a particularly popular material.
Parameter
Customer's design is available!
Configuration:
| Parameter | Softwall Clean Booth | Hardwall Clean Booth | |
| Cleanliness | From Class 100 to Class 1000,000 | ||
| External Dimension | As per requirement | ||
| FFU | Dimension | 2'X4' | |
| Cabinet Material | Stainless Steel | ||
| Power source | 110V/60hz/av/dc, 220V/60HZ/AV/DC | ||
| HEPA Filter | H14 Hepa filter | ||
| Frame Material | Stainless Steel | ||
| Wall Material | Anti-static soft PVC wall 106~109Ω | Anti-static acrylic 106~109Ω | |
| Lighting | Lamps | Available in LED and T5 | |
| Air condition | As per requirement | Available in constant temperature air conditioner/constant temperature and humidity conditioner | |
Besides above configuration, we can customized as required.
Technical Paremeters:
| Model | Inner dimension | Number of | Air volume(m3/h) |
| W * D * H (mm) | FFU | ||
| KEL 6 * 8 | 2000 * 3000 * 2400 | 6 | 6600 |
| KEL 8 * 12 | 2440 * 3660 * 2400 | 12 | 13200 |
| KEL 8 * 16 | 2450 * 4880 * 2400 | 16 | 17600 |
| KEL 8 * 20 | 2440 * 6100 * 2400 | 20 | 22000 |
| KEL 6 * 8 | 2000 * 3000 * 2400 | 2 | 2200 |
| KEL 8 * 16 | 2440 * 4880 * 2400 | 4 | 4400 |
| KEL 12 * 16 | 3660 * 4880 * 2400 | 6 | 6600 |
| KEL 20 * 24 | 6100 * 7300 * 2400 | 12 | 13200 |
| KEL 6 * 8 | 2000 * 3000 * 2400 | 1 | 1100 |
| KEL 8 * 16 | 2440 * 4880 * 2400 | 2 | 2200 |
| KEL 12 * 16 | 3660 * 4880 * 2400 | 4 | 4400 |
| KEL 20 * 24 | 6100 * 7300 * 2400 | 8 | 8800 |
| KEL 16 * 24 | 4880 * 7300 * 2400 | 2 | 2200 |
| KEL 18 * 30 | 5480 * 9150 * 2400 | 4 | 4400 |
| KEL 20 * 42 | 6100 * 12800 * 2400 | 6 | 6600 |
Please contact with us for your best clean room solutions.
Feature
Standard product
• FFU : galvanized case;smooth surface finish and rust-free
• HEPA filter : HEPA filters comply with EN 1822;efficency is available from H13 to U17
• Frame : frames are made of sus stainless steel square pipe.they are good looking and anti-corrosive
• Buliding envelope : wall is made of anti-static,soft PVC or acrylic
• Control box : control box is controlled by computer programs.parameters are easy to be adjusted.
Alternative configuration
• Pressure difference control device;
• Pass box;
• Air shower pass box;
• ULPA filter;
• Sticky mat;
• Air shower;
• Transparent/grid pvc curtain;
• Clean bench;
• Thermo-static and humid -static air conditiong system
