Vertical Lamianr Flow Booth With Stainless Steel 304 Frame ISO7

China Vertical Lamianr Flow Booth  With Stainless Steel 304 Frame ISO7 supplier
Vertical Lamianr Flow Booth  With Stainless Steel 304 Frame ISO7 supplier Vertical Lamianr Flow Booth  With Stainless Steel 304 Frame ISO7 supplier

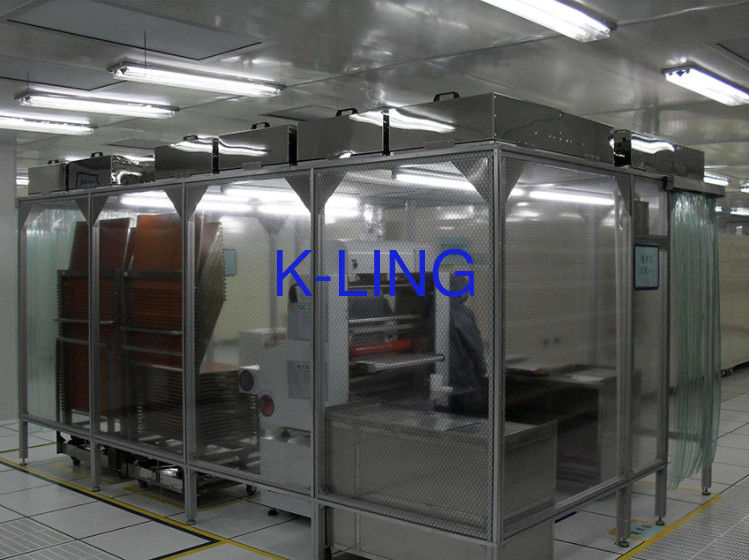

Large Image :  Vertical Lamianr Flow Booth With Stainless Steel 304 Frame ISO7

Product Details:

Place of Origin: China
Brand Name: K-LING
Certification: CE
Model Number: KEL-KLF6000

Payment & Shipping Terms:

Minimum Order Quantity: 1SQM
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 2000sqm/month
Contact Now
Detailed Product Description
Product Name: Vertical Lamianr Flow Booth Frame: Stainless Steel 304 Frame
Fan Filter Unit: 1175x575x350mm HEPA Filter: 99.99%@0.3um
Perfilter: 450x450x17mm Purification Rank: ISO7
Wall: Plastic Curtain(T=0.3mm) Ceiling: Stainless Steel Board
Purification Light: 300Lux Size: 8000x4500x3100mm

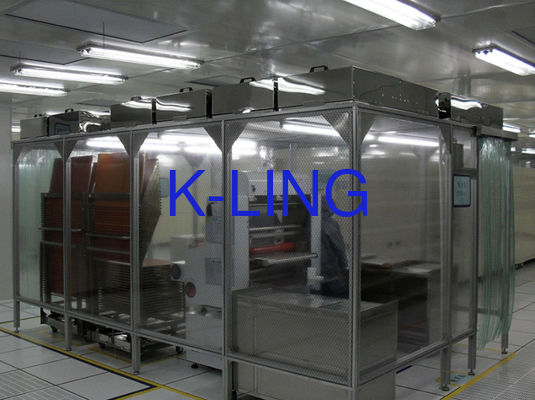

ISO7 Vertical Lamianr Flow Booth With Stainless Steel 304 Frame







Vertical Laminar Flow Booth Details:


1.  Verticial lamianr flow booth frame is made of stainless steel or aluminum alloy (50 * 50) more rectangular tube;
2. The other three sides with glue of antistatic grid curtain seal thickness (0.3 MM).
    Positive use anti-static special door curtain.
3. The relative distribution of common fluorescent lamp (such as customers have special need to install the

     other tubes please explain in order).
4.  The lower part is equipped with the foot cup can be mounted mobile casters (universal mobile);

5. High quality FFU and Singapore PCI centrifugal fan.

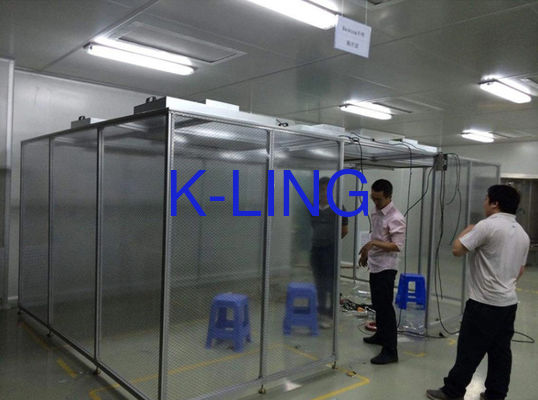

 Vertical Lamianr Flow Booth  With Stainless Steel 304 Frame ISO7

Vertical Lamianr Flow Booth  With Stainless Steel 304 Frame ISO7



Feature :

(1) Assembly structure designed, easy installation and shortening the delivery time;
(2) Easily moved (Omnidirectional wheels can be installed), suitable for building small and high cleanliness area;
(3) Module structure to improve high cleanliness class easily, great expansibility and high value for reusing;
(4) Compared with ultra-clean clean bench, clean booth has large useful and effective area; while compared with traditional clean room, it has such features as low cost, fast construction and no limits for low floor.



        Model

  KEL-SFC-23B KEL-SFC-34A KEL-SFC-68C
External Dimension (W×L×H) 2100×3100×2590 3100×4100×2590 6100×8100×2590
Internal Work Zone  (W×L×H) 2000×3000×2200 3000×4000×1900 6000×8000×2200
Clean Class Level 1000Class(ISO6) 100Class(ISO5) 10000Class(ISO7)
Air Velocity 0.3-0.5m/s 0.3-0.5m/s 0.3-0.5m/s
Noise ≤65dB ≤65dB ≤65dB
Vibration Half Peak ≤5um ≤5um ≤5um
Light 40W×2 40W×2 40W×2
Power Supply 220V/50Hz 220V/50Hz 220V/50Hz
Material

Framework: Epoxy powder coated steel/ Stainless steel/Aluminum

Wall: Anti-static strip curtain/Soft air curtain/Plexiglas



Customized design is welcome.



Advantages Show of the cleanroom:

1: Economy - compared to the traditional civil style clean room, the cost is greatly reduced

2: Efficiency - supply clean vertical airflow, maintaining the clean class level of indoor

3: Convenience - a standard clean shed (10m*10m) only take a few hours to install, easier disassemble.

4: Flexibility - bracket type can increase the number of FFU in order to raised clean class level from ten

    thousand up to one hundred thousand





keling'S Product



1. Can be used alone, also can be combined.
2. With civil or fabricated best level than clean shed (room), less investment, quick effect, convenient installation, low operating cost.
3. The modular structure, and improve the level of cleanliness is easy, strong expansibility, and repeated use of high value
4. Convenient mobile (can be installed wheels)





Warranty of cleanroom

1 Year Limited Warranty and online 24 hours services is offered.
