ISO8 HEPA Air Filtration Softwall Clean Room For Candy Workshop / Laminar Flow Booth

ISO8 HEPA Air Filtration Softwall Clean Room For Candy Workshop  /  Laminar Flow Booth
ISO8 HEPA Air Filtration Softwall Clean Room For Candy Workshop  /  Laminar Flow Booth ISO8 HEPA Air Filtration Softwall Clean Room For Candy Workshop  /  Laminar Flow Booth

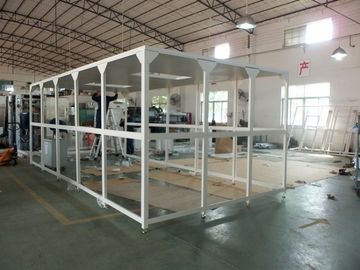

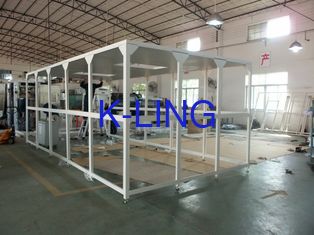

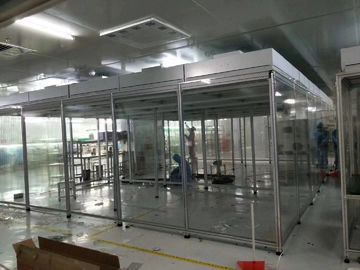

Large Image :  ISO8 HEPA Air Filtration Softwall Clean Room For Candy Workshop / Laminar Flow Booth

Product Details:
Place of Origin: China
Brand Name: K-LING
Certification: CE
Model Number: KEL-KLF8000
Payment & Shipping Terms:
Minimum Order Quantity: 1SQM
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 2000sqm/month
Detailed Product Description
Product Name: Dust Free Modular Cleanroom Frame: Stainless Steel 304 Frame
Fan Filter Unit: 1175x575x350mm HEPA Filter: 99.99%@0.3um
Perfilter: 450x450x17mm Purification Rank: Class1000/ ISO6
Wall: Plastic Curtain(T=0.3mm) Ceiling: Stainless Steel Board
Purification Light: 300LUX Size: 8000x4500x3100mm
High Light:

Laboratory clean room

,

portable clean room



ISO8 HEPA Air filtration Clean Room Booth For Candy workshop







Product introduction:





       cleanroom booth is a local air purification equipment to provide high- clean environment, is a clean room which the   most quickly and easily create. Softwall cleanroom main consist of cabinet, fan, prefilter and HEPA filter, damping layer, lamps and other components. It can be suspended, but also can be ground support, compact structure, easy to use. Can use single or multiple connections to compose of banded clean area.



      cleanroom booth interior cleanliness can be reached100-100000class level, in order to reduce structural costs of clean shed, keling changed the traditional concept of clean shed design, take a modular integrated design concept ,

this structure has a variety of separate clean area, for some areas of general clean class level clean room that required high clean class level do local creation to reduce costs, thus making the workers and equipment, products effectively isolated, can minimize the pollution, thereby increasing the rate of qualified products.





Draft wall :
 ISO8 HEPA Air Filtration Softwall Clean Room For Candy Workshop  /  Laminar Flow Booth 0

ISO8 HEPA Air Filtration Softwall Clean Room For Candy Workshop  /  Laminar Flow Booth 1





Model KEL-SFC-23B KEL-SFC-34A KEL-SFC-68C
External Dimension (W×L×H) 2100×3100×2590 3100×4100×2590 6100×8100×2590
Internal Work Zone  (W×L×H) 2000×3000×2200 3000×4000×1900 6000×8000×2200
Clean Class Level 1000Class(ISO6) 100Class(ISO5) 10000Class(ISO7)
Air Velocity 0.3-0.5m/s 0.3-0.5m/s 0.3-0.5m/s
Noise ≤65dB ≤65dB ≤65dB
Vibration Half Peak ≤5um ≤5um ≤5um
Light 40W×2 40W×2 40W×2
Power Supply 220V/50Hz 220V/50Hz 220V/50Hz
Material

Framework: Epoxy powder coated steel/ Stainless steel/Aluminum

Wall: Anti-static strip curtain/Soft air curtain/Plexiglas



Customized design is welcome.



Advantages Show of the cleanroom:

1: Economy - compared to the traditional civil style clean room, the cost is greatly reduced

2: Efficiency - supply clean vertical airflow, maintaining the clean class level of indoor

3: Convenience - a standard clean shed (10m*10m) only take a few hours to install, easier disassemble.

4: Flexibility - bracket type can increase the number of FFU in order to raised clean class level from ten

    thousand up to one hundred thousand





keling'S Product



1. Can be used alone, also can be combined.
2. With civil or fabricated best level than clean shed (room), less investment, quick effect, convenient installation, low operating cost.
3. The modular structure, and improve the level of cleanliness is easy, strong expansibility, and repeated use of high value
4. Convenient mobile (can be installed wheels)





Warranty of cleanroom

1 Year Limited Warranty and online 24 hours services is offered.



Why choose us?

1. Advanced and new Machinery equipment
2. More than 10 years experience in filtration field
3. Professional exporting sales with 7 years experience
4. Closed biggest port ,shenzhen port or Guangzhou port

5. Sincere honest and trustworthy
