Payment & Shipping Terms:
|External Size:||700x500x590mm||Internal Size:||500x500x500mm|
|Inter Locker:||Electric Inter Locker||Material:||Entirety SUS304|
|Door:||Glass With SUS304 Frame||UV Light:||1pcs|
|Name:||Cleanroom Pass Through Box||Application:||Pharmacetuical Cleanroom|
|After-sales Service Provided:||Engineers Available To Service Machinery Oversea||Usage:||Controlled Environment|
|Products:||Cleanroom Pass Through Box|

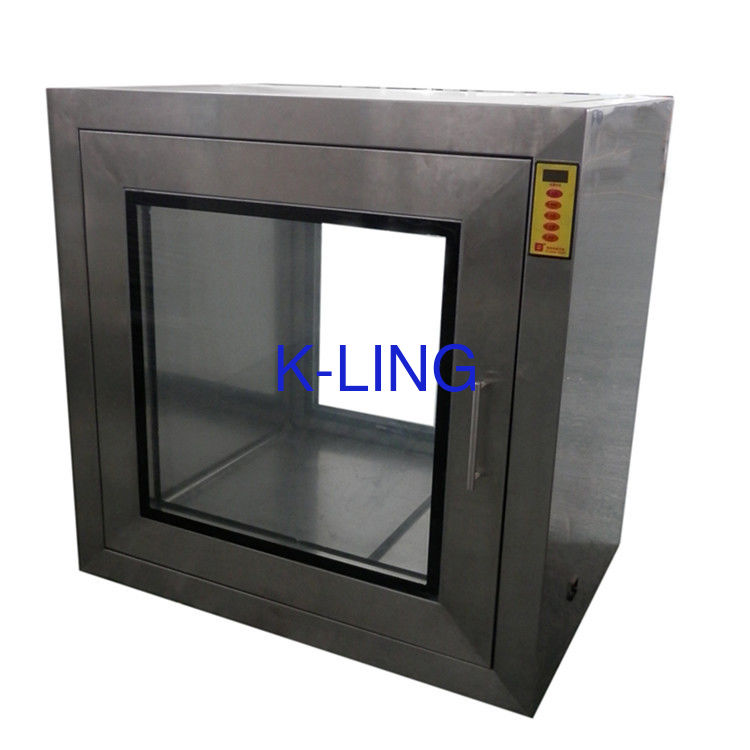

Pass through box four side is inner arc so that there is any dust accumulation
External size: 800*670*690mm
Internal size: 600*600*600mm
External Material: stainless steel304 (t=1.2)
Inside Material: stainless steel304 (t=1.2)
Double layer vacuum glass
Both side door is inlaid type
Locker: software computer interlocking
the static pass through box is a kind of auxiliary equipment in clean room. It is mainly used in the transmission of small pieces goods between clean area and clean area, clean area and unclean area, so as to reduce the clean room door open time and reduce the clean room pollution to the lowest level, The pass box is made of stainless steel plate, smooth and clean. The both doors are interlinked, effectively preventing cross contaminated, electronic or mechanical interlocking devices installed , and fixed with ultraviolet lamps so that eliminate the bacterial infection
|External size (mm)
|Work zone (mm)
|1: Entirety Sus304.(T=1.2/1.5mm)
2: Entirety sus201. (T=1.2/1.5mm)
3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm)
4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)
|Control system||1: Both door is software computer control board
2: Pass Box inside four corner is round shape without any dust accumulation
3: Double layer vacuum glass have very good appearance
4: Software computer interlocking door with long time using life
|UV light||1 PCS|
|packing size (mm)||800x870x850mm||1000x870x940mm||1100x970x1050mm|
Standard Export Poly wood Packing(Fumigant free material)
micro-electronics, laboratory, national defense, precise instrument and gauges, bio-pharmaceuticals, opto-electronics field.
operating features :
1: it is manufactured for the most demanding controlled environment applications.
2: All components are designed for maximum chemical resistance and enhanced durability for a longservice life.
3: It is constructed of stainless steel inside, making the work zone easy to clean and endurable.
4:Mechanical and electric interlock are reliable, maintenance-free, maintains clean room integrity by preventing both door from being opened and the same time.
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--purification rank test (if need)
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
