| Name: | Dispensing DownFlow Booth | Material: | SS304 |
|---|---|---|---|
| Airflow Velocity: | 0.45m/S | Filters: | G4,F8.H13,H14 And PLF Screens |
| Noise: | <65dB | Cleanliness: | Class 100 |
| Start Port: | Guangzhou, Shenzhen, Shanghai | Hepa Filter: | 99.9955%@0.3um |
| After-sales Service Provided: | Engineers Available To Serivce Machinery Overseas | Product Name: | Dispensing Booth/ Filtering System |
| High Light: | pharmaceutical sampling booth,pharmaceutical weighing booth |
||

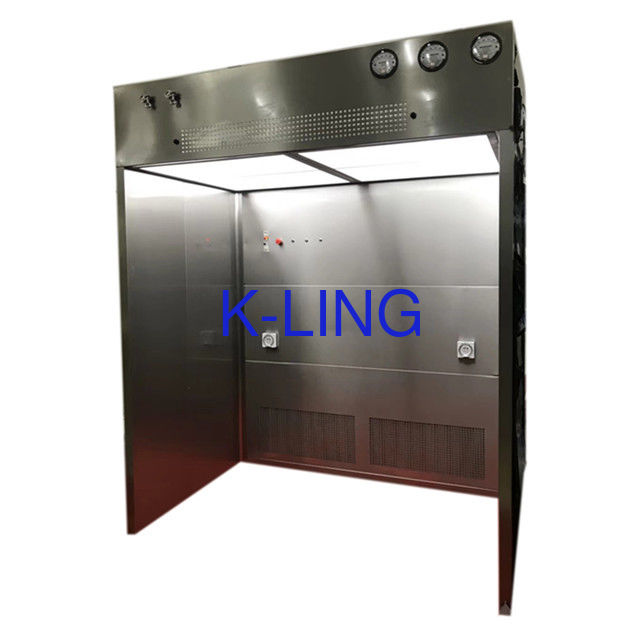

introduction:
Weighing Booth, Dispensing Booth, Sampling Booth for GMP is a special local purification equipment that is used in the latest version of GMP for the production of sterile preparations. It provides a vertical unidirectional airflow, and some (80%-90%) clean air circulates in the working area. 10%-20% is discharged to the nearby area to create a negative pressure in the work area, prevent cross-contamination to ensure a high cleanliness environment in the work area. It is composed of work area, return air box and fan box cabinet, etc. The control panel is located on the front of work area, which can start the device, adjust air speed and working conditions. It has differential pressure gauges, buzzers and wind speed sensors, which can test the real-time resistance of filters, failure alarm and real-time speed in the work area.
Feature:
1.Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
2.Differential pressure gauge is equipped to real-time monitor the filters.
3.Unique designed air duct effectively controls the noise.
4.Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.
5.Intelligent control mode and alarm system ensure the reliability of running.
6.Smooth transitions of wall and ground can eliminate the blind angle.
7.Customized design is welcome.
Parameter:
Customer's Design Is Available.
| Class 100 HEPA Air Filter Dispensing Booth | |||
| Model | KEL - DB1000 | KEL - DB1500 | KEL- DB2000 |
| External size (W*D*H)mm | 1100X1300X2650 | 1600X1800X2650 | 2100X2300X2650 |
| Internal size (W*D*H)mm | 1000X1000X2150 | 1500X1500X2150 | 2000X2000X2150 |
| Cleanliness | Class 100 | ||
| HEAP Filter | 99.995% @0.3um | ||
| Pre-Filter | 75% @5um | ||
| Air Velocity | 0.3-0.6m/s | ||
| Noise | 57-65 dB | ||
| Material | Stainlesst Steel 304 / 201 | ||
| Standard | ( FS209E ) USA | ||
| Power | 380V/ 50HZ | ||
CUSTOMIZED DESIGN IS AVAILABLE
