Payment & Shipping Terms:
|Name:||Dispensing DownFlow Booth||Material:||SS316|
|Airflow Velocity:||0.45m/S||Filters:||G4,F8.H13,H14 And PLF Screens|
|Start Port:||Guangzhou, Shenzhen, Shanghai||Hepa Filter:||firstname.lastname@example.org|
|After-sales Service Provided:||Engineers Available To Serivce Machinery Overseas|

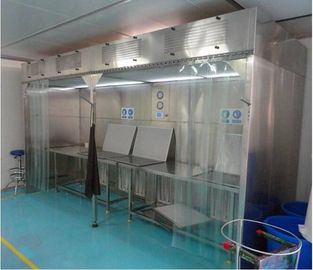

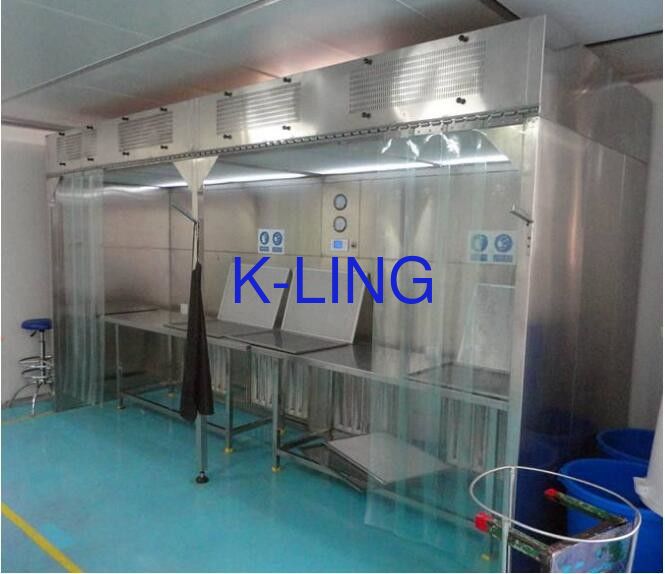

Weighing booth is used to perform dispensing operations in pharmaceutical industries.
The equipment serve as safety equipment to operator doing the dispensing operation.
In dispensing booth big packing of dangerous chemicals are dispensed to small packing by operator under class 100 environment and 10% exhaust system adopted.
Dispensing unit is always a negative pressure unit and air is circulated from outside of the equipment.
Hence during sucked at prefilter given at the bottom of the cabinet so that chemical don’t affect the operator.
Dispensing booth consists of HEPA flter, prefilter, echaust filter with efficiency of 99.997% down to 0.3um at rated air flow and pressure drop,velocity of 0.45M/S is adjusted to get laminar flow in the equipment .
System is equipped with inbuilt motor blower and are dynamically balanced for low noise and vierations, with pre filter at suction ,
10% air is discharged through exhaust filter ro generate negative pressure in equipment.
1.Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
2.Differential pressure gauge is equipped to real-time monitor the filters.
3.Unique designed air duct effectively controls the noise.
4.Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.
5.Intelligent control mode and alarm system ensure the reliability of running.
6.Smooth transitions of wall and ground can eliminate the blind angle.
7.Customized design is welcome.
Customer's Design Is Available.

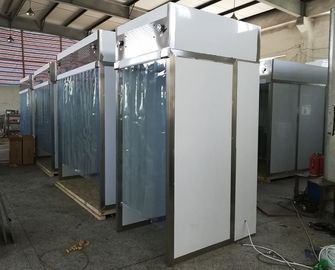

Dispensing Unit Downflow Booth
|Model||KEL - DB1000|
|External size (W*D*H)mm||1100X1300X2650|
|Internal size (W*D*H)mm||1000X1000X2150|
|HEAP Filter||99.995% @0.3um|
|Material||Stainlesst Steel 304 / 201|
|Standard||( FS209E ) USA|
