Product Details:
Payment & Shipping Terms:
|
| After Sales Service Provided: | Oversea Service Center Available | Material: | Stainless Steel Sus304/201/q195 /galvanized Sheet |
|---|---|---|---|
| Applilcaiton: | Chemical Lab Cleanroom | Clean Level: | Class A |
| Floor: | Anti-static Floor Or Epoxy Floor | Cleanliness: | Class 10-10000 |
| Wind Speed: | 0.45m/s For Cleanroom | Hepa Filter: | 99.99%@0.3um |

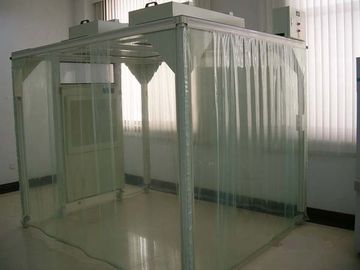

| Frame Material: | SUS Aluminum | Name: | Clean Shed |
| Other Name: | Laminar Air Flow Clean Shed | ||
| High Light: | Laboratory clean room,portable clean room |
||
Quickly detail
External size : 3000x2000x2596mm
Internal Size: 2900x1900x2205mm
Purification rank: Class1000
HEPA filter efficiency: 99.999%@0.3um
Laminar flow: vertical
Air speed :0.3-0.6m/s
Power: 220V/50HZ or 110V/60HZ
Introduction :
Operating features:
1: The ceiling enables flexible placement of fan filter unit, the empty bays cover by powder coated
steel panels.
2: the construction utilizing full welded, reinforced, steel tubular sections. The frame is finished with
an abrasion-resistance oven-baked powder coat, it is free-standing not require any suspending
ceiling supports
3: The PVC anti-static curtain door allowing for easy passage of material and personnel in and
out of the clean area. The curtain terminated at a specific distance above the floor to allow
for exhaust of clean air out of the clean room.
4: Control box can rapid start up the fan filter unit and lighting.
5: Fan filter unit is the energy efficient external rotor motor design reduces operating
costs and has extremely low noise and vibration levels, improving the working conditions
in the clean room.
6: the high quality mini-pleats HEPA filter utilizing an improved mini-pleated separation
technique to maximize surface area improves efficiency and extends the filter life.
Technical Parameter:
Products Parameter:
| Item | Prefabricated modular cleanroom | |
| Purification Rank | Class 100 to class 100.000 | |
| Dimension L*W*H | According client request | |
| Fan Filter Unit | Dimension | 2x2,2x4,4x4 optional |
| Structural Material | Stainless steel, aluminum alloy, AI-Zn plate | |
| Power Supply | 220V/50HZ AC | |
| Air Filter | Mini-pleats HEPA /ULPA Air filter | |
| Frame Material | Aluminum alloy/stainless steel201/304 | |
| Wall Material | Acrylic /sandwich panel/anti-static acrylic | |
| Ceiling | Aluminium –plastic panel , sandwich panel | |
| Air Conditioner | Constant temperature air conditioning Or Constant temperature and humidity air conditioning |
|
| Lighting | LED light or T5 (Optional ) | |
| Air Shower | Optional | |
| Pass Box | Optional | |
| Air Flow Floor | Optional | |
Customer’s design is available.
Our Service:
1: Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
