ISO7 Industrial Anti Static Softwall Clean Room For Mobile LCD Cleanroom

ISO7 Industrial Anti Static Softwall Clean Rooms For Mobile LCD Cleanroom

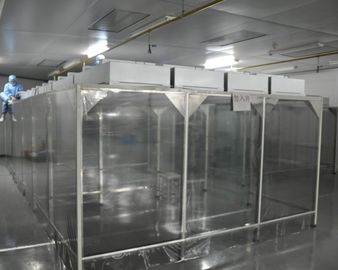

The Softwall Cleanroom can be easily installed in any location to provide a Clean Environment where you need it. They are used for electronic assembly, medical device assembly, product isolation, spot cleanliness over fill line applications in every conceivable size and room cleanliness classification. The standard unit is composed of a Clear Satin Anodized Aluminum Frame for an aesthetically pleasing look with minimum maintenance. Units are available with floor anchors, leveling feet or casters for portable applications.

Unlike permanent, hard wall cleanroom systems, soft wall cleanrooms feature plastic, often translucent strips suspended from a ceiling or other high point of attachment. They can also be enclosed by tightly stretched fabric on a frame.

Semiconductor fabrication, medical testing, biotechnology research, and other very sensitive processes can be conducted in soft wall cleanrooms. Many processes that don’t require extreme levels of decontamination can be conducted within soft wall cleanrooms.

They are often easily installed, and some varieties are portable; these qualities can make soft wall cleanrooms more economical than hard wall alternatives, especially for smaller-scale operations that don’t require constant access to a strictly controlled working environment. When combined with other control measures like protective clothing for workers (such protective clothes are sometimes called bunny suits), air filters, and double doors, soft wall cleanrooms are capable of achieving high levels of decontamination.

Features:

• Cleanliness from Class 100 – 100,000

• Clear Satin Anodized 6063-T5 Aluminum Frame

• Clear Solid Softwall Vinyl curtains around perimeter with strip entrances as required for entry/exit

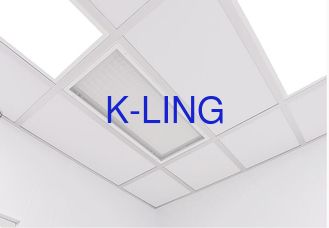

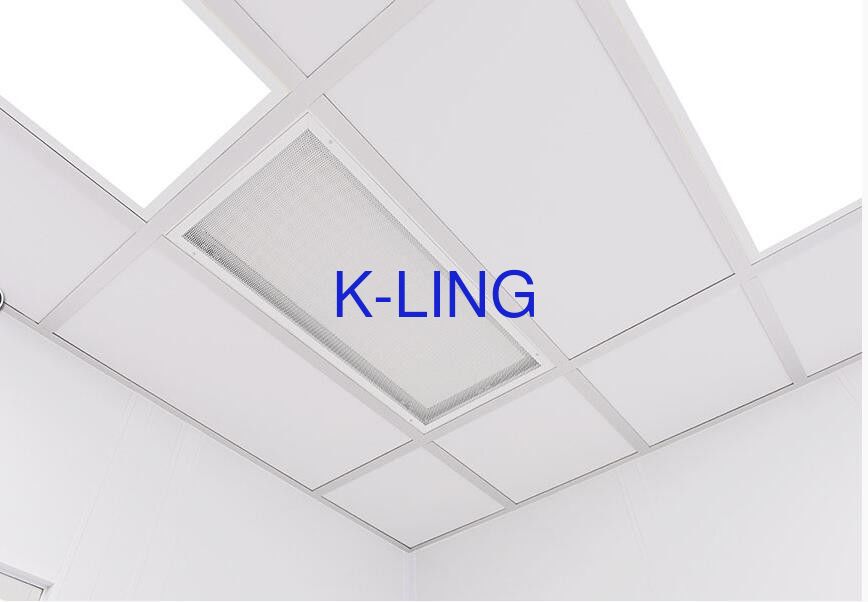

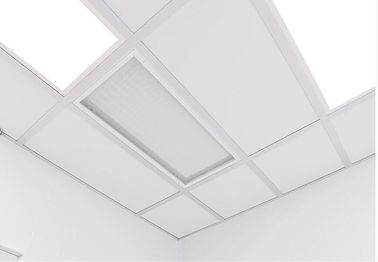

• Mac-10 HEPA Fan Filter Unit

• Sealed Cleanroom Light Troffers to provide 100 foot candles at working height level

• Heavy duty 1-1/2” clear satin anodized aluminum ceiling support T-grid

• Gasket for ceiling supplied to insure a positive seal

• Pre-wired prior to shipping with light/FFU switch, power cord(s) or junction box

• Designed to meet ISO Cleanroom Air Cleanliness standards

• Many options are available for these systems including clear antistatic vinyl curtain for static concerns or all stainless steel frames for pharmaceutical applications.

•

• Technical Parameter:



  MODEL	HA-LFB2000	HA-LFB3000	HA-LFB4000	HA-LFB5000
  Ex size (mm) (W*D*H)	2000X2000X2596	3000X3000X2596	4000X4000X2596	5000X5000X2596
  In size (mm)	1900x1900x2205	2900x2900x2205	3900x3900x2205	4900x4900x2205
  Purification rank	Class10-300,000(FS209E USA)
  HEPA filter	Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS)
  Pre-filter	Efficiency : 85% @ 5um
  Control system	PC control system / promised speed by control box
  Pressure Gauge	American Dywer pressure
  Noise	<50-55 dB (test point distance is 1m)
  Air velocity (m3/h)	0.2-0.5m/s Adjustable (test point distance is 30cm)
  Frame material	stainless steel/steel with power coated/Cast aluminum profile
  Wall frame	Tempered glass / PVC anti-static curtain (option)
  Fan	EBM Fan /Taiwan fan/ Domestic fan (option)
  Power suppler	AC110/220v 50HZ/60HZ
