Product Details:
Payment & Shipping Terms:
|
| Product Name: | Prefabricated Modular Clean Room | Purification Rank: | Class 100-class 10000 |
|---|---|---|---|
| Frame: | Steel With Powder Coated Tube | Wall: | Plastic Curtain |
| Ceiling: | Steel With Powder Caoted Board | Fan Filter Unit: | 175x575x350mm |
| Hepa Filter: | 99.99%@0.3um | Perfilter: | G1-G2 |
| After-sales Service Provided: | Engineer Available To Service Machiner Oversea | Application: | OT Room, Air Clening In A Small Area |
| Product Name: | Class 10000 Clean Room | Waranty: | 1 Year |
| High Light: | Laboratory clean room,portable clean room |
||
Quickly detail :
Extenral size :5000x3000x2596mm
Internal Size: 4900x2900x2205mm
Purification rank: Class1000
HEPA filter efficiency: 99.999%@0.3um
Laminar flow: vertical
Air speed :0.3-0.6m/s
Power: 220V/50HZ
Introduction and applications:

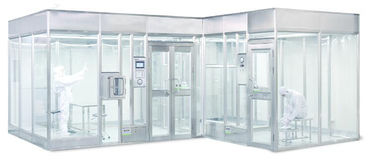

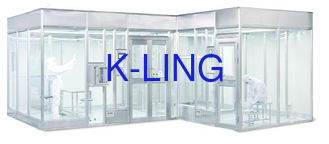

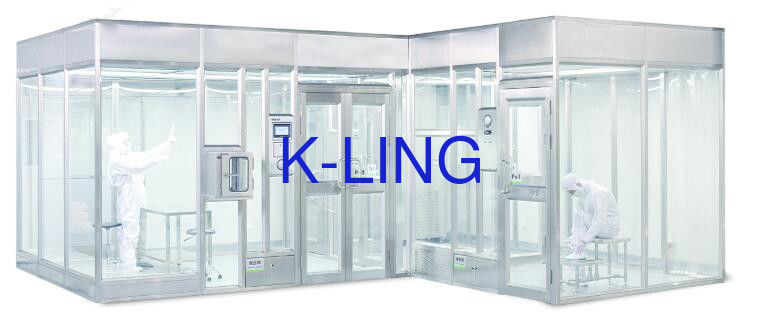

Clean Room Modular is a kind of clean room, it can quickly improve the cleanliness of the equipment. Because of its low cost, convenient and flexible asembly, it is widely used in optical, electronic assembly line work, laboratories, assembly area local area purify occasions. The clean booth adopt to FFU generating winds, with industrialize aluminum(stainless steel or painting steel) as it's frame and static-free sticker(or carbon glass), it can make the clean room's cleanliness attain 10-100K.
Food industry, aerospace, life sciences, biotechnology, medical devices, plastic injection module, electronics assembly or hospital pharmacy

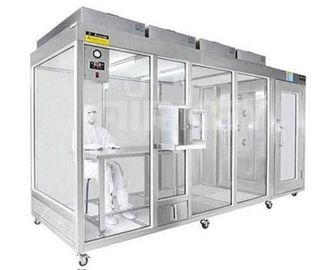

Illustration:
1: The frame is steel cube with milk powder coated.
2: M support leg
3: The wall made from clarity synthetic glass.
4: FFU control box.
5: FFU with HEPA filter and pre-filter
6: Purification lamp
7: PVC strip curtain
8: Purification rank class100-1000 (FS209E Stander)
Technical Parameter:
| Model | KEL-LFB-23B | KEL-LFB-34A | KEL-LFB-68C |
| External Dimension | 2100×3100×2590 | 3100×4100×2590 | 6100×8100×2590 |
| Internal Work Zone | 2000×3000×2200 | 3000×4000×1900 | 6000×8000×2200 |
| Clean Class Level | 1000Class(ISO6) | 100Class(ISO5) | 10000Class(ISO7) |
| Air Velocity | 0.3-0.5m/s | 0.3-0.5m/s | 0.3-0.5m/s |
| Noise | ≤65dB | ≤65dB | ≤65dB |
| Vibration Half Peak | ≤5um | ≤5um | ≤5um |
| Light | 40W×2 | 40W×4 | 40W×8 |
| Power Supply | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Material |
Framework: Epoxy powder coated steel/ Stainless steel/Aluminum Wall: Anti-static strip curtain/Soft air curtain/Plexiglas |
||
Customer’s design is available.
