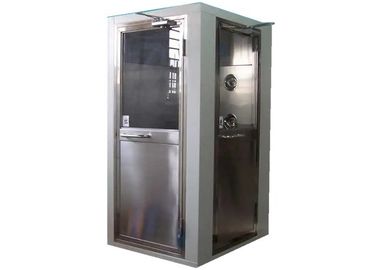

L Type Door Direction Cleanroom Air Shower With Custom Width For Clean Area
Introduction
Cleanroom Air Shower is the necessary goods access to clean rooms or clean workshop access to reduce the large number of dust particles brought in and out of goods.
Features
Humanized high-tech intelligent programmable microprocessor controller, to each user a great degree of convenience, specialization and security control. The air shower with Archimedes spiral design air supply system to provide 25m / s - 30m / s super wind speed, to ensure that personnel and goods into the clean room to achieve the perfect dust removal effect. Automatic control operation, double door electronic interlocking, infrared sensor automatically blowing shower.
Parameter:
|
External size (mm) (WXDXH) |
1200x7500x2180 | |
|
Work zone (mm) (WXDXH) |
800x7360x1910 | |
| Persons per cycle | 10-50 person | |
| Air shower Duration | Factory set at 12 second (adjustable) | |
| Air shower direction | Three side with blowing | |
|
Material (Option) |
1: Entirety Sus304. 2: Entirety sus201. 3: External is steel with power coated, Internal is SUS304. 4: External is steel with power coated. Internal is SUS201. |
|
| Control system |
1: PCL control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable). 3: Infrared ray inductor for inside personal shower automatic. 4: Human voice prompt system. 5: with CE remark |
|
| The power of Fan |
380V/50HZ/750W (6 sets) |
|
| Air flow of fan(m3/h) | 1300m3/h | |
| Fan run (r/min) | 2800r/min | |
| Nozzle in stain less steel | 100 pcs | |
| Wind speed(m/s) | 23-29m/s | |
| Noise level(dB) | <62dB | |
| LED Fluorescent Lamp | 20wx6 | |
|
HEPA Filter |
Size(mm) | 630X630X69mm |
| Efficiency | 99.99%@0.3um | |
| Air velocity | 1000(m3/h) | |
| Initial resistance(pa) | <220pa | |
|
Pre-filter |
Size(mm) | 775x380x17 |
| Efficiency | 75% @ 0.5um | |
| Resistance(pa) | <30 Pa | |
| Electrical | Power supply | 380v/50Hz or 380v |
| Net power(kw) | 0.75X6 kw | |
Customer’s design is available.
Configuration parameter of air shower
1, automatic control, single hair shower system with PLC Intelligent control means, control panel LED. The display can correctly show the operating status of the wind shower, interlocking two-door State, air shower cycle schedule and delayed open the door state. And has a
photoelectric sensor, one-way channel wind Shower room, from the non-clean area into the infrared sensor to close the people after the shower on the shower, shower entrance door lock, can only go out from the air shower room;
2, single hair shower room softkey touch-button time relay, LED Show and set the blowing time, adjustable in the range of 10-99s, Air shower time can be adjusted according to the difference between the external environment of the air shower;
3, modular structure, single single hair shower cabinet modular design;
4, high performance, high sealing, the use of imported electronic components, stable and reliable performance

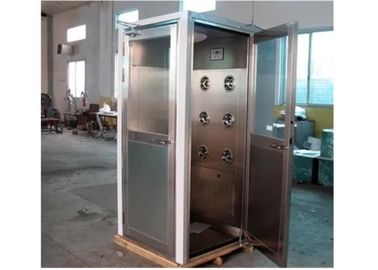

Air shower case display:
