KeLing Purification Technology Company Limited
-------------------------------------------------------------
Advanced. High-Qulity. Reasonable.
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Cleanless: | ISO 8 | Size: | Made As Customer's Wish |
|---|---|---|---|
| Material: | Made As Customer's Wish | Standard: | CE |
| Wind Speed: | 25-30 M/S Super Speed | Showering Time: | 0-99 S Adjustable |
| High Light: | semiconductor clean room,lab clean room |
||

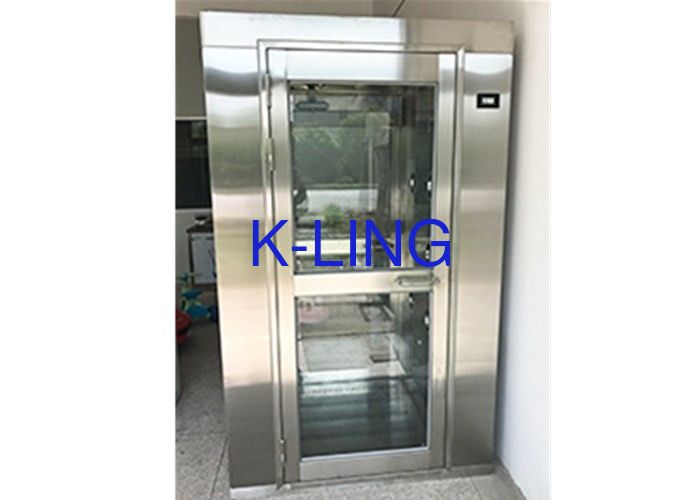

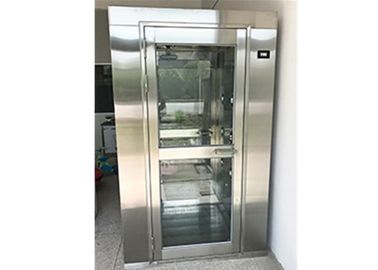

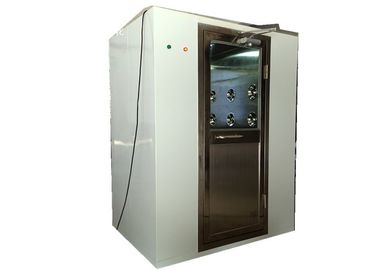

Safety ISO 8 Clean Room Air Shower Self Contained Chambers CE Standard
Application
Air Shower are self contained chambers installed at entrances to cleanrooms and other controlled environments.
They minimize particulate matter entering or exiting the clean space. Personnel and materials entering or exiting the
controlled environment are " scrubbed" by high velocity ULPA-filtered air ets with velocities of 20-25m/s (4000-4500fpm).
Contaminated air is then drawn through the base within the unit, filtered and recirculated.
Keling is a expert in air showers for demanding applications in the micro-electronics, semiconductors,
pharmaceutical, spray painting, lab animal research and food researches
Features:
1.Meet EN 1822 for H13 Performance.
2.Microprocessor programming control, auto blowing.
3.Standard electric interlocking doors, automaticlly lock
4.Made of SUS304 stainless steel, abrasion-resistant or oven-baked powder coated finish.
5.Individually factory tested before shipment for safety and performance.
6.Fully assembled delivery, ready to use when arrive customer.
7.one year warranty
Parameter:
| Model | KEL-AS -1000 | KEL-AS -1500 | KEL-AS -2000 | KEL-AS -3000 | |
| External size (W*D*HMM) |
1300*1000*2050 | 1300*1500*2050 | 1300*2000*2050 | 1300*3000*2050 | |
| Internal size (W*D*HMM) |
800*900*1900 | 800*1400*1900 | 800*1900*1900 | 800*2900*1900 | |
| JET speed | 20-25M/S | ||||
| No. of Nozzles | 12 | 16 | 24 | 36 | |
| No. of Blower | 2 | 2 | 4 | 6 | |
| Power supply | AC,1PH,220V 50/60HZ or AC, 3PH, 380V, 50/60HZ | ||||
| Power consumption(APPROX) | 1100W | 1200W | 2200W | 3300W | |
| HEPA Filter | Efficiency | 99.99% or more at 0.3um particles | |||
| Size | 760*570*70mm | 760*570*70mm | 760*570*70mm | 760*570*70 | |
| No. | 2 | 2 | 4 | 6 | |
| Pre-filter | synthetic fiber | ||||
| Construction | casing | SUS304 stainless steel or Powder baked epoxy finishing steel | |||
| Floor | SUS304 | ||||
| Door | SUS304 | ||||
| Light fitting | 20W*1 | 20W*1 | 20W*2 | 20W*3 | |
| Weight APPROX) |
190KG | 260KG | 360KG | 550KG | |
| No. of person capacity | 1 | 1-2 | 2-3 | 3-4 | |
Customer’s design is available.
