| Construction:: | Box Filter | Certification:: | ISO9001, SGS,CE |
|---|---|---|---|
| Test:: | To EN1822 Standard | Sealant:: | Polyurethane |
| Filter Frame:: | Aluminum/galvanized/SS | Application:: | Ducted Supply Application |
| High Light: | hepa filter unit,duct filter box |
||

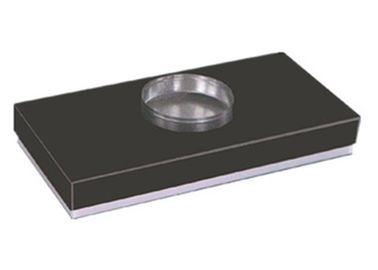

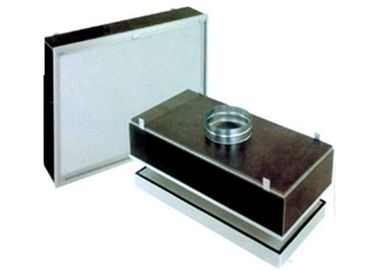

Low Profile Disposable Duct HEPA Filter Box Module For Clean Room
Features
Trapping 99.99% or higher of 0.3μm particles
High-quality galvanized steel sheet, aluminum alloy extrusions or stainless steel frame with externally applied fireprof heat-insulator
Adopt computer-controlled automatic production line for manufacture of mini pleat filter material, occupies small space
Using special glass fiber filter paper as the filter material, low resistance and large air volume
Compact structure, low-cost investment, easy installation and maintenance
Air outlet with a high-quality aluminum or stainless expanded sheet has a generous appearance
Each HEPA box is through rigorous testing
Application
Suitable as terminal filtration of air supply system in clean workshops and clean rooms required the high cleanliness. Availably to ensure air flow speed and prevent swirl.
Parameter
| Model |
Size (W×H×D)mm |
Air flow (m³/h) |
Intital Resistance(pa) |
Final Resistance(pa) |
Media area (m2) |
Dust Holding(g) |
Efficiency |
| AL-C2-001 | 610×610×120 | 1000 | ≤220 | 400-600 | 11.6 | 700 | H13-H14 |
| AL-C2-002 | 915×610×120 | 1600 | ≤220 | 400-600 | 17.6 | 1050 | H13-H14 |
| AL-C2-003 | 1220×610×120 | 2000 | ≤220 | 400-600 | 23.5 | 1400 | H13-H14 |
| AL-C2-004 | 610×610×150 | 1200 | ≤220 | 400-600 | 14.1 | 850 | H13-H14 |
| AL-C2-005 | 915×610×150 | 1900 | ≤220 | 400-600 | 21.3 | 1300 | H13-H14 |
| AL-C2-006 | 1220×610×150 | 2550 | ≤220 | 400-600 | 28.5 | 1700 | H13-H14 |
| AL-C2-007 | 610×610×220 | 1500 | ≤220 | 400-600 | 16.4 | 1000 | H13-H14 |
| AL-C2-008 | 915×610×220 | 2200 | ≤220 | 400-600 | 24.7 | 1500 | H13-H14 |
Detail
