Cold Rolled Steel Plate HEPA Filter Box Air Conditioning Type ISO 9001

China Cold Rolled Steel Plate HEPA Filter Box Air Conditioning Type ISO 9001 supplier
Cold Rolled Steel Plate HEPA Filter Box Air Conditioning Type ISO 9001 supplier Cold Rolled Steel Plate HEPA Filter Box Air Conditioning Type ISO 9001 supplier

Large Image :  Cold Rolled Steel Plate HEPA Filter Box Air Conditioning Type ISO 9001

Product Details:

Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood packing
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Type:: Air Conditioning Material:: Super Cold Rolled Steel
Flange Size:: As Per Requested Certificate:: CE, ISO 9001
Feature:: Compact Form, Simple And Realiable Structure. Install Easily. Warranty:: 12 Months

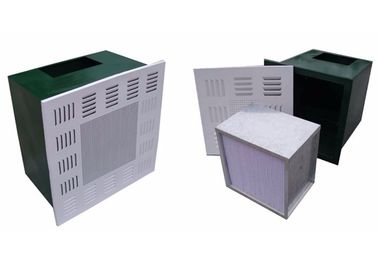

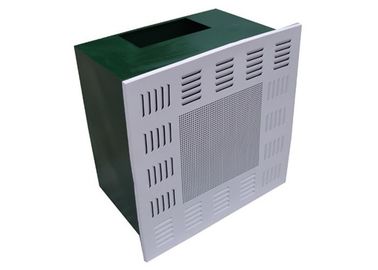

Cold Rolled Steel Plate,The Air Outlet Of The Terminal HEPA Filter Box





Introduction



The high efficiency air supply outlet is an ideal terminal filter device for 10000, 10000 and 100000 grade purifying air conditioning system, which can be widely used in the fields of medicine, sanitation, electronics, chemical industry and so on. The high-efficiency air supply outlet is used as the terminal filter device to transform and build 1000-300000 clean rooms at all levels. It is the key equipment to meet the purification requirements. The high-efficiency air supply outlet includes a static pressure box, a diversion plate, a high-efficiency filter, and an air flow regulating valve. The interface with the air duct can be top-connected or side-connected.





Main Features



The static pressure box is made of low carbon steel material, and the high efficiency filter and static pressure box are made into one whole. At the air inlet of the static pressure box, the regulating valve adjusts the air supply uniformity and the static pressure effect. Light weight, easy to install and more convenient, especially suitable for installation in clean rooms in the form of aluminum alloy keels.





Main performance parameters



1. Purification efficiency: high efficiency ≥99.99% (sodium flame method) sub-efficiency ≥85% (sodium flame method)

2. Initial resistance: high efficiency ≤ 235.44Pa sub-efficient ≤ 69





Application :



Applied to the end filtration of high civilian or industrial clean site for cleanliness.such as:
Electronics,semiconductor, precision machinery, pharmaceutical, hospital, food and other industries.




Product Specification:



Model

Dimension(mm)

Excluding thickness of insulation cotton

W*L*H

HEPA filter size

(mm) W*L*H

Rated air volume/Initial resistance

(m3/h & Pa)

Efficiency

KEL-12

1200*600*180

1160*560*70

1050/120

H13

KEL-11

1200*570*180

1130*530*70

960/120

H13

KEL-91

915*600*180

875*560*70

780/120

H13

KEL-87

870*570*180

830*530*70

700/120

H13

KEL-60

600*600*180

560*560*70

480/120

H13

KEL-57

570*570*180

530*530*70

450/120

H13


Customized design is available






Detail
Cold Rolled Steel Plate HEPA Filter Box Air Conditioning Type ISO 9001





Packing Way



We will choose packing in cartons or wooden cases according to the requirements of the products and customers to ensure that the products are not damaged before delivery to the destination.





Shipping Way



Customers can choose a variety of logistics modes, such as express delivery, sea transportation and air transportation, or also can find their own freight forwarder to transport the goods.
