Compact 1000 M3/H Duct HEPA Filter Box For Ventilaion Easy Installation

Certification
Good quality Cleanroom Air Shower for sales
Good quality Cleanroom Air Shower for sales
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

Compact 1000 M3/H Duct HEPA Filter Box For Ventilaion Easy Installation

China Compact 1000 M3/H Duct HEPA Filter Box For Ventilaion Easy Installation supplier
Compact 1000 M3/H Duct HEPA Filter Box For Ventilaion Easy Installation supplier Compact 1000 M3/H Duct HEPA Filter Box For Ventilaion Easy Installation supplier Compact 1000 M3/H Duct HEPA Filter Box For Ventilaion Easy Installation supplier

Large Image :  Compact 1000 M3/H Duct HEPA Filter Box For Ventilaion Easy Installation

Product Details:

Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-1290

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood packing
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Size:: Customized Frame Material:: Aluminum/Galvanized/Stainless Steel
Weight:: 20~60 KG Feature:: Easy Installation
Air Volume:: 400~3000m^3/h Function:: Ventilaion



1000 m3/h Duct HEPA Filter box For Ventilaion Easy Installation





Introduction



The high efficiency air supply outlet is an ideal terminal filter device for 10000, 10000 and 100000 grade purifying air conditioning system, which can be widely used in the fields of medicine, sanitation, electronics, chemical industry and so on. The high-efficiency air supply outlet is used as the terminal filter device to transform and build 1000-300000 clean rooms at all levels. It is the key equipment to meet the purification requirements. The high-efficiency air supply outlet includes a static pressure box, a diversion plate, a high-efficiency filter, and an air flow regulating valve. The interface with the air duct can be top-connected or side-connected.





Characteristic



*The box body is made of high quality cold rolled steel sheet.

*Surface electrostatic spraying

*Beautiful and generous, compact structure, easy to install and maintain

*The divergent panels on the outlet surface are aluminium sprayed, cold rolled steel sprayed or stainless steel.





Application :



Applied to the end filtration of high civilian or industrial clean site for cleanliness.such as:
Electronics,semiconductor, precision machinery, pharmaceutical, hospital, food and other industries.




Product Specification:



Model

Dimension(mm)

Excluding thickness of insulation cotton

W*L*H

HEPA filter size

(mm) W*L*H

Rated air volume/Initial resistance

(m3/h & Pa)

Efficiency

KEL-12

1200*600*180

1160*560*70

1050/120

H13

KEL-11

1200*570*180

1130*530*70

960/120

H13

KEL-91

915*600*180

875*560*70

780/120

H13

KEL-87

870*570*180

830*530*70

700/120

H13

KEL-60

600*600*180

560*560*70

480/120

H13

KEL-57

570*570*180

530*530*70

450/120

H13


Customized design is available

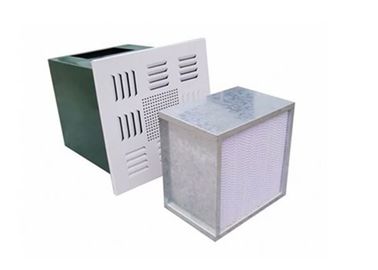

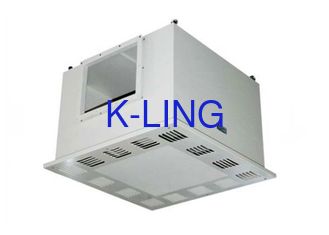

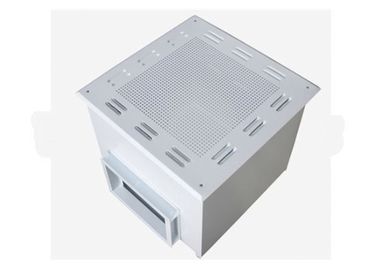

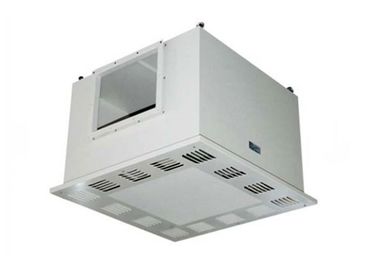

Product Display

Compact 1000 M3/H Duct HEPA Filter Box For Ventilaion Easy Installation

Compact 1000 M3/H Duct HEPA Filter Box For Ventilaion Easy Installation
