| Model:: | Top Or Sidewall Air Supply | Feature:: | Easy Installation |
|---|---|---|---|
| Efficiency:: | H13 | Function:: | Ventilaion |
| Flange Size:: | As Per Requested | Flange Position:: | Top/ Side |
| High Light: | hepa filter unit,duct filter box |
||

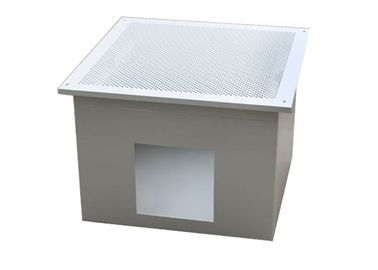

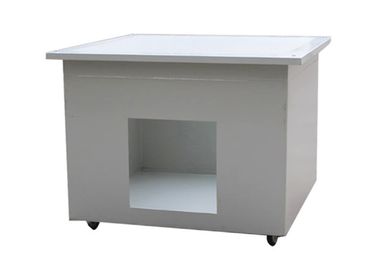

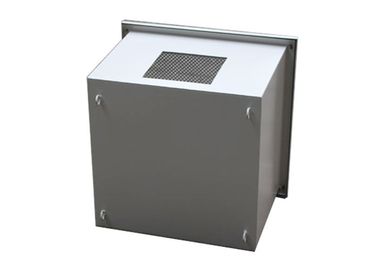

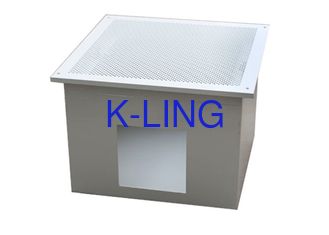

Fresh Air Supply Powder Coated Steel HEPA Filter Box For Electronic Factory
Introduction
Hepa filter box are ideal terminal filtration devices for thousands, tens of thousands, and 100,000 levels of purified air conditioning systems, which can be widely used in the purification air conditioning systems of the medical, health, electronics, and chemical industries. Hepa unit is used as a terminal filter for the reconstruction and construction of a 1000-3 00000 grade cleaning room, and is a key equipment to meet the purification requirements. High efficiency air outlet includes static pressure box, discharge plate, high efficiency filter, the interface with the air pipe can be a top or side connection.
HEPA filter box has good air flow structure and can make the whole clean area purified and ensure the purifying effect. It is the final filtration for the clean room. With less investment, and simple construction.
Materials and operating conditions
●External frame:Expoxy coated cooling roll steel or SS stainless
●Operation: manual air flow damper
●filter: HEPA air filter.99.99%
●Use the highest temperature, humidity:80℃,80%
●contains the static pressure box, HEPA filter, diffuser, and duct can connect to the side or top.
Application :
It's widely used in pharmaceutical, foods, laboratory, operating table, micro-electronics, film, optical equipment, precision instruments, and other high cleanliness requirements of working environment.
Product Specification:
|
Type |
Air plenum |
HEPA Filter Size (mm) |
Air Flow (m³/h) |
Blast Pipe Size (A×B, mm) |
Blast Pipe Link (C×D, mm) |
Assemble Size (T×S×R×G, mm) |
|
|
size (L×W×H, mm) |
|
|
|
|
|
|
KEL-320 |
370×370×530 |
320×320×220 |
500 |
200×200 |
250×250 |
438×438 |
|
KEL-484 |
534×534×530 |
484×484×220 |
1000 |
320×200 |
370×250 |
588×588×394×294 |
|
KEL-610 |
660×660×460 |
610×610×150 |
|
320×250 |
370×300 |
716×716×358×358 |
|
KEL-820 |
87×650×460 |
820×600×150 |
1200 |
320×250 |
370×300 |
926×706×436×353 |
|
KEL-630 |
680×680×530 |
630×630×220 |
1500 |
320×250 |
370×300 |
736×736×368×368 |
|
KEL-726 |
776×534×530 |
726×484×220 |
|
400×200 |
450×250 |
832×590×416×295 |
|
KEL-915 |
965×660×460 |
915×610×150 |
|
400×250 |
500×300 |
1022×716×511×358 |
|
KEL-968 |
1018×534×530 |
968×484×220 |
200 |
500×200 |
550×250 |
1074×590×537×298 |
|
KEL-1220 |
1270×660×460 |
1220×610×150 |
|
500×250 |
550×250 |
1326×716×332×358 |
|
KEL-945 |
955×680×530 |
945×630×220 |
2200 |
500×250 |
550×300 |
1052×736×526×368 |
|
KEL-1260 |
1310×680×530 |
1260×630×220 |
3000 |
500×250 |
650×300 |
1336×736×455×368 |
Customized design is available
