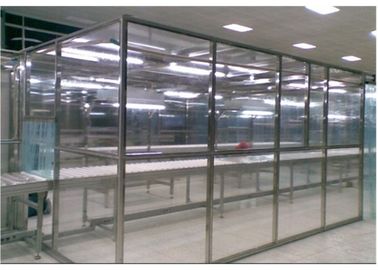

Dust Free Clean Room/ Softwall Clean Room/ Clean Booth for Food packaging

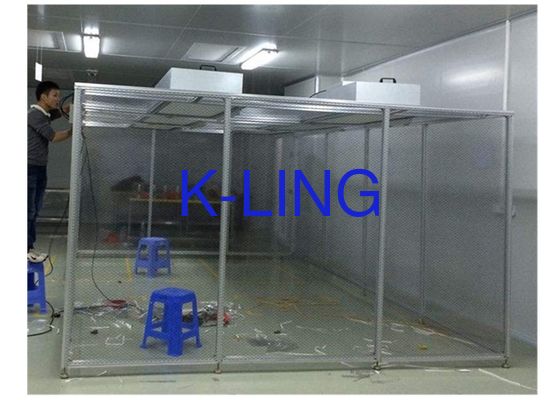

Softwall clean room introduction
A Cleanroom or clean room is an environment, typically used in manufacturing or scientific research, that has a low level of environmental pollutants such as dust, airborne microbes, aerosol particles and chemical vapors. More accurately, a cleanroom has a controlled level of contaimination that is specified by the number of particles per cubic meter at a specified particle size. To give perspective, the ambient air outside in a typical urban environment contains 35,000,000 particles per cubic meter in the size range 0.5um and larger in diameter, corresponding to an ISO9 cleanroom, while an ISO1 cleanroom allows no particles in that size range and only 12 particles per cubic meter of 0.3um and smaller.
Partial clean room type
Customer's design is available!
| MODEL | KEL-LFB5000 | ||||
| Ex size (mm)(W*D*H) | 4000X4000X2596 | ||||
| 3900x3900x2205 | |||||
| Purification rank | Class100 | ||||
| HEPA filter | Efficiency : 99.99% @ 0.3um | ||||
| Pre-filter | Efficiency : 85% @ 5um | ||||
| Control system | PC control system / promised speed by control box | ||||
| Pressure Gauge | American Dywer pressure | ||||
| Noise | <50-55 dB (test point distance is 1m) | ||||
| Air velocity(m3/h) | 0.2-0.5m/s Adjustable (test point distance is 30cm) | ||||
| Frame material | stainless steel/steel with power coated/Cast aluminum profile | ||||
| Wall frame | Tempered glass / PVC anti-static curtain (option) | ||||
| Fan | EBM Fan /Taiwan fan/ Domestic fan (option) | ||||
| Power suppler | AC110/220v 50HZ/60HZ | ||||
Main Features
• Easy installation,low cost.modularized design and easy upgrading.
• Modular design:clean booth can be as small as several square meters and can be as large as hundreds of square meters;easy upgrading;clean booth can be configured from class 10 to class 100000 according to needs
• Application:LCM,CMOS camera module,touch panel,optical module,flim,biological pharmacy,medical and food industry.
Standard product
• FFU : galvanized case;smooth surface finish and rust-free
• HEPA filter : HEPA filters comply with EN 1822;efficency is available from H13 to U17
• Frame : frames are made of sus stainless steel square pipe.they are good looking and anti-corrosive
• Buliding envelope : wall is made of anti-static,soft PVC or acrylic
• Control box : control box is controlled by computer programs.parameters are easy to be adjusted.
Alternative configuration
• Pressure difference control device;
• Pass box;
• Air shower pass box;
• ULPA filter;
• Sticky mat;
• Air shower;
• Transparent/grid pvc curtain;
• Clean bench;
• Thermo-static and humid -static air conditiong system
The structure of FFU
Case
