| Name: | Softwall Clean Room/ Clean Booth | Model: | Prefabricated Portable |
|---|---|---|---|
| Frame:: | Aluminum | Rank: | Class10-300,000(FS209E USA) |
| Noise: | 50-55 DB (test Point Distance Is 1m) | Original: | GuangZhou China |
| High Light: | Laboratory clean room,portable clean room |
||

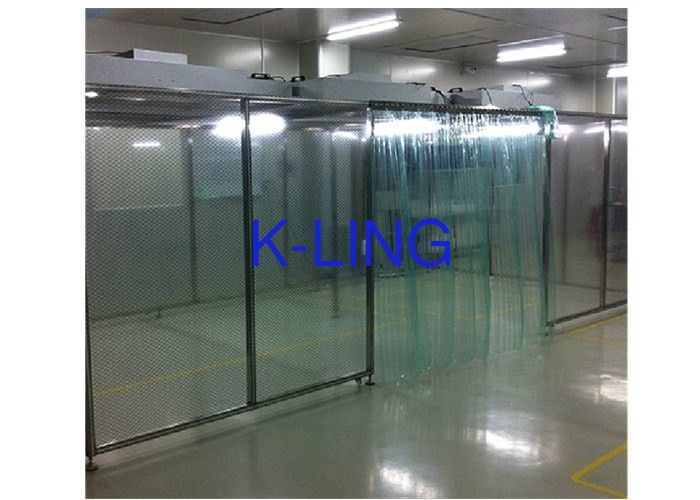

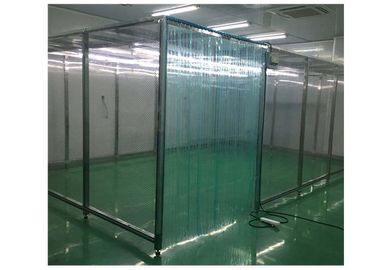

Prefabricated Portable Clean Booth Softwall Clean Room Low Noise
Introduction
Clean shed is a kind of air purification equipment which can provide GaoJie’s clean environment. Clean shed from the main box, fan, early efficiency air filters, damping layer, etc. the lamp shell spray. The product can be suspended, and can be ground support, compact structure, easy to use. Clean studio (simple clean room) is a most convenient to establish simple clean room, clean studio with a variety of clean grade and space collocation can according to the use requirements of design, so the simple using elastic big easy installation and short construction period and mobility for its main characteristic, clean studio and in the general level of clean room in some areas need high cleanliness do the partial addition to reduce the cost for.
Clean studio using industrial aluminum or stainless steel square, square iron through spray) as a framework, fan filter unit(FFU) air, flying all around anti-static curtian (or glass), the internal purification level can reach class 100-10000. Applicable to the operating area of the local high level of purification requirements.
Partial clean room type
Customer's design is available!
| MODEL | KEL-LFB2000 |
| Ex size (mm)(W*D*H) | 3000X3000X2596 |
| In size (mm) | 2900x2900x2205 |
| Purification rank | Class10-300,000(FS209E USA) |
| HEPA filter efficiency | 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS) |
| Pre-filterEfficiency | 85% @ 5um |
| Control system | PC control system / promised speed by control box |
| Pressure Gauge | American Dywer pressure |
| Noise | <50-55 dB (test point distance is 1m) |
| Air velocity(m3/h) | 0.2-0.5m/s Adjustable (test point distance is 30cm) |
| Frame material | stainless steel/steel with power coated/Cast aluminum profile |
| Wall frame | Tempered glass / PVC anti-static curtain (option) |
| Fan | EBM Fan /Taiwan fan/ Domestic fan (option) |
| Power suppler | AC110/220v 50HZ/60HZ |
Product Feature
1.can be used alone, can also be used in combination.
2. compared with the civil construction or assembly type clean room, less investment, quick effect, easy installation, low operating cost.
3. Modular structure, improve the cleanliness class is easy, strong, and repeat the use of high value.
4. Easy to move(can be installed universal wheel).
Case
About us
GuangZhou HaoAir Purification Technology Co., Ltd is a professional manufacturer in air purification field for many years in China. Our products with good quality, reasonable prices and custom design.
Our main products include the cleanroom air shower , cargo air shower , static pass box , dynamic pass box , dispensing booth , vertical / horizontal laminar air flow clean cabinet , air filter,etc. AII of products can be customized.
Our customers come from Pakistan , Chile , India , Algeria , Nigeria, Italy , Czech Republic , ect.
