| Name: | Softwall Clean Room/ Clean Booth | Door: | Anti-static Dust Proof Curtain |
|---|---|---|---|
| Application: | Pharmaceutical Factory | Rank: | Class 1000 |
| Material: | SUS304/ SUS201/ Powder Coated/ Cast Aluminum Profile | Original: | GuangZhou China |
| High Light: | Laboratory clean room,portable clean room |
||

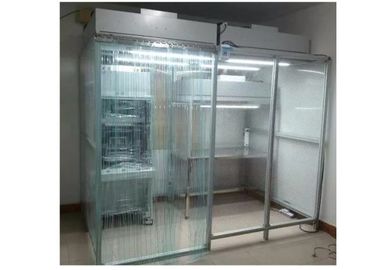

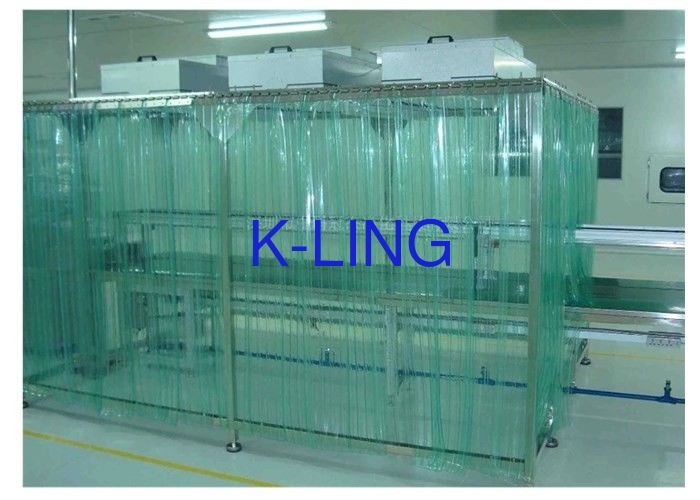

Class 1000 Pharmaceutical Clean Booth Anti-static Dust Proof Curtain
Softwall clean room introduction
Softwall Cleanroom (Clean booth) allows you to build an economical cleanroom (clean booth) in nearly any office or production space in just a few days.
All steel frame supports ceiling grid, flexible vinyl strip shields, fluorescent lighting and fan/filter units to meet cleanliness requirements from ISO 5 – 8(clean booth). Clean booth Shields are made of static-dissipative PVC or Acrylic Sheet to control electro-static discharge.
Partial clean room type
Customer's design is available!
| MODEL | KEL-LFB3000 |
| Ex size (mm)(W*D*H) | 3000X3000X2596 |
| In size (mm) | 2900x2900x2205 |
| Purification rank | Class10-300,000(FS209E USA) |
| HEPA filter efficiency | 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS) |
| Pre-filterEfficiency | 85% @ 5um |
| Control system | PC control system / promised speed by control box |
| Pressure Gauge | American Dywer pressure |
| Noise | <50-55 dB (test point distance is 1m) |
| Air velocity(m3/h) | 0.2-0.5m/s Adjustable (test point distance is 30cm) |
| Frame material | stainless steel/steel with power coated/Cast aluminum profile |
| Wall frame | Tempered glass / PVC anti-static curtain (option) |
| Fan | EBM Fan /Taiwan fan/ Domestic fan (option) |
| Power suppler | AC110/220v 50HZ/60HZ |
Product Feature
1.Customized design is welcomed.
2. It can be used singly or combined.
3. Compared with civil type and fabricated type clean room of hundred clean level, it has low running cost and fast effect and can be easily installed.
4. Modular construction, easy to increase clean level, good expansion and reusable, convenient movement (Universal wheel can be installed).
Detail
1. Control panel : Users can control the fan, light, UV and adjust the air velocity with it.
2.Soft Wall Material:PVC anti-static dustproof curtain.
3.FFU(Fan Filter Unit), which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for clean room applications.
