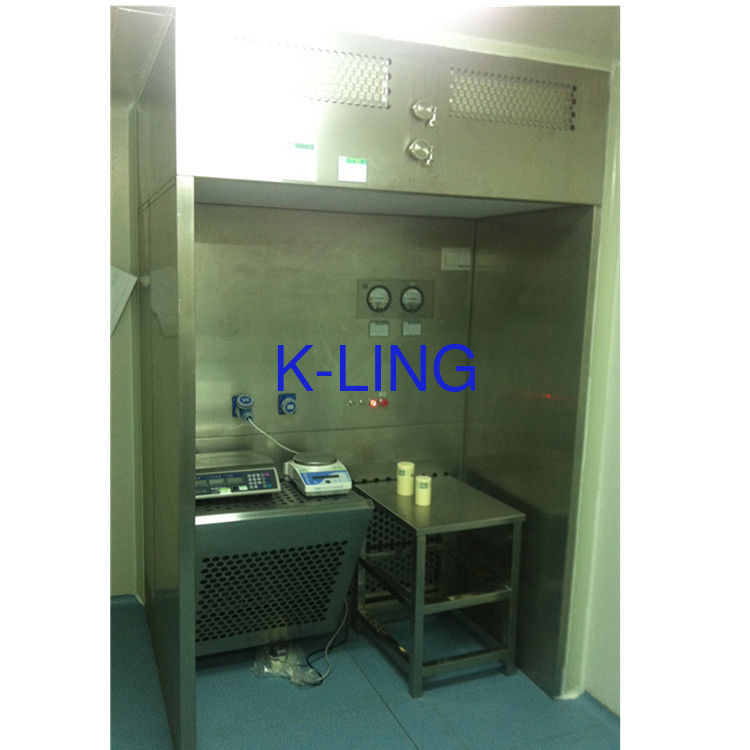

SUS201 Cleanroom Negative Pressure Downflow Booth Pharmaceutical Intelligent Control Mode

SUS201 Cleanroom Negative Pressure Downflow Booth Pharmaceutical Intelligent Control Mode
SUS201 Cleanroom Negative Pressure Downflow Booth Pharmaceutical Intelligent Control Mode SUS201 Cleanroom Negative Pressure Downflow Booth Pharmaceutical Intelligent Control Mode

Large Image :  SUS201 Cleanroom Negative Pressure Downflow Booth Pharmaceutical Intelligent Control Mode

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE,
Model Number: KEL-DB2000
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 200Sets/month
Detailed Product Description
Application: Pharmaceutical Cleanroom Powders Control Material: SUS201
Product Name: Downflow Booth Test Way: DOP/POA Test Port
Pressure Way: Negative Pressure HEPA Filter: H14 HEPA Filter
Efficiency: 99.995%@0.3um Purification Rank: Class100
High Light:

pharmaceutical sampling booth

,

downflow booth



SUS201 Cleanroom Negative Pressure Downflow Booth For Pharmaceutical Powders





Introduction:




When you need to provide a clean, contained environment for the safe handling of pharmaceutical powders in dispensing, weighing, sampling, or subdivision operations, the PharmAir booths are a highly effective option.

By our fully trained engineers to ensure the system fully conforms to your requirements.

To complete the package, our dedicated Aftersales department will supply total support.

Available in epoxy coated zintec steel, 201/304/316L stainless steel or a combination of both.

Various heights and widths (up to 6m) are available Custom filtration designs with a minimum of fine dust and then Hepa filters in either the technical stack or the ceiling plenum.

Single pass/once through airflow systems used in applications where solvent vapors are present.





Operating features:


 1:  Automatic changeable frequency system monitors the air velocity to ensure its stability in the

    working area.

2:  Differential pressure gauge is equipped to real-time monitor the filters.

3: Unique designed air duct effectively controls the noise.

4: Uniform flow design of main working area can protects the operators and prevent encironmental

     pollution and cross contamination of products.

5: Intelligent control mode and alarm system ensure the reliability of running.

6: Smooth transitions of wall and ground can eliminate the blind angle.

7: Humanized design simplifies the operation of all kinds of filters
SUS201 Cleanroom Negative Pressure Downflow Booth Pharmaceutical Intelligent Control Mode 0



Technical Parameter :

 Model

KEL-DB2525

External size(mm)

 2400x2800x2650mm

Internal size(mm)

2500X2500X2150mm

Cleanliness:

Class100

HEPA Filter

 99.995@0.3um

Pre-filter

   75%@5um

Air velocity

  0.2-0.5m/s

Noise

57-65dB

Material

Stainless steel 201/304 or steel with power coated

Power

380V/50hz

Standard

(FS 209E)USA .

Customer’s design is available.




SUS201 Cleanroom Negative Pressure Downflow Booth Pharmaceutical Intelligent Control Mode 1




 1: Fan filter units      2: HEPA air filter      3: Purification lamp      4: Pressure gauge    5: Secondary air filter

 6: Control board   7: PVC anti-static curtain       8: Pre-filter          9: Power cable      10: Maintenance board

 11: Diffuser board



Factory test:


All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.




Down flow booth air speed test :




 SUS201 Cleanroom Negative Pressure Downflow Booth Pharmaceutical Intelligent Control Mode 2
Factory test include:

-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)


Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.


Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.


Why you choose K-LING Company ?



Professional sales:


• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team



Punctual delivery time:


• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.




  After sales service:


• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.

SUS201 Cleanroom Negative Pressure Downflow Booth Pharmaceutical Intelligent Control Mode 3
