Payment & Shipping Terms:
|Name:||Softwall Clean Room||Other Name:||Clean Booth/ Sampling Booth|
|Use:||Pharmaceutical Factory||Purification Rank:||Class 1000|
|HEPA Filter Efficiency:||firstname.lastname@example.org||Pre-filter Efficiency:||85% @ 5um|

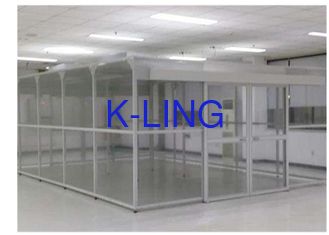

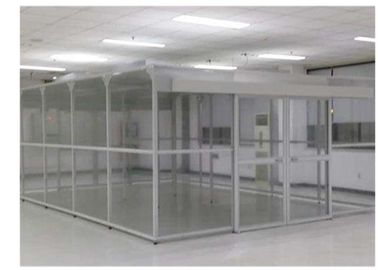

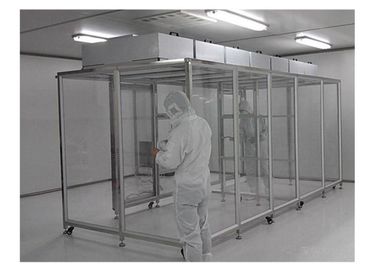

Class 1000 Softwall Clean Room/ Clean Booth Pharmaceutical Sampling Booth
Softwall clean room introduction
Clean Room Modular is a kind of clean room, it can quickly improve the cleanliness of the equipment. Because of its low cost, convenient and flexible asembly, it is widely used in optical, electronic assembly line work, laboratories, assembly area local area purify occasions. The clean booth adopt to FFU generating winds, with industrialize aluminum(stainless steel or painting steel) as it's frame and static-free sticker(or carbon glass), it can make the clean room's cleanliness attain 10-100K.
Partial clean room type
Customer's design is available!
|Ex size (mm)(W*D*H)||2000X2000X2596||3000X3000X2596||4000X4000X2596||5000X5000X2596|
|In size (mm)||1900x1900x2205||2900x2900x2205||3900x3900x2205||4900x4900x2205|
|Purification rank||Class10-300,000(FS209E USA)|
|HEPA filter||Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS)|
|Pre-filter||Efficiency : 85% @ 5um|
|Control system||PC control system / promised speed by control box|
|Pressure Gauge||American Dywer pressure|
|Noise||<50-55 dB (test point distance is 1m)|
|Air velocity(m3/h)||0.2-0.5m/s Adjustable (test point distance is 30cm)|
|Frame material||stainless steel/steel with power coated/Cast aluminum profile|
|Wall frame||Tempered glass / PVC anti-static curtain (option)|
|Fan||EBM Fan /Taiwan fan/ Domestic fan (option)|
|Power suppler||AC110/220v 50HZ/60HZ|
Flexible assembly: Compared to the tradtitional clean booth it is easy to installation, cost effective with less investment and quick return, as it cost shorter construction period in the assembling frame by manufacturer.
Selected high quality material: import for the grind curtain and adjustable plastiv cup and universal wheel, convenience for installation and maintance.
Humanized structure: Compared to the clean bench it has the multi-function, which can be used as a unit or combined with another clean equipment together. Even you can assemble it on the production line to change dust-free production.
Flexibility: Less limitation or low requirements for the floor and spot situation, the iner space is enough to use and the frame canbe recycled
Product design drawing
GuangZhou HaoAir Purification Technology Co., Ltd is a professional manufacturer in air purification field for many years in China. Our products with good quality, reasonable prices and custom design.
Our main products include the cleanroom air shower , cargo air shower , static pass box , dynamic pass box , dispensing booth , vertical / horizontal laminar air flow clean cabinet , air filter,etc. AII of products can be customized.
Our customers come from Pakistan , Chile , India , Algeria , Nigeria, Italy , Czech Republic , ect.
