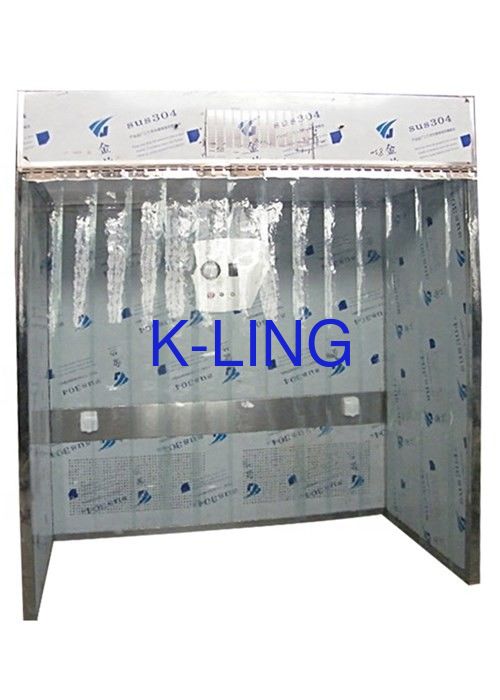

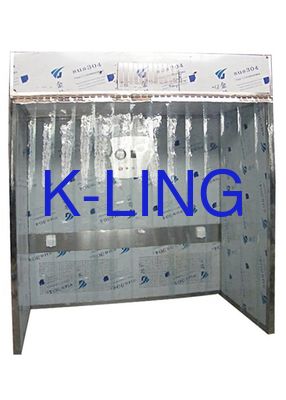

Pharmaceutical Workshop Dispensing Booth GMP Standard With CE Certification
Dispensing Booth Introduction
Dispensing booth is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment. Dispensing booth is also called sampling booth or weighing booth.
Dispensing Booth Feature
1.Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
2.Differential pressure gauge is equipped to real-time monitor the filters.
3.Unique designed air duct effectively controls the noise.
4.Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.
5.Intelligent control mode and alarm system ensure the reliability of running.
6.Smooth transitions of wall and ground can eliminate the blind angle.
7.Customized design is welcome.
Dispensing Booth Parameter
Customer's design is available.
| MODEL | KEL-DB1000 | KEL-DB1500 | KEL-DB1900 |
|
External size (mm) (W*D*H) |
1200x1500x2400mm | 1500x1700x2400mm | 2000×2200×2650mm |
|
Work zone (mm) (W*D*H) |
1100x1200x2000mm | 1400x1200x2000mm | 1900×1900×2150mm |
| Purification rank | Class 100(ISO5) | ||
| Air speed | 0.2-0.7m/s | ||
|
Material (Option) |
1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm) |
||
| Intensity of illumination | ≥300 Lux | ||
| Noise level(dB) | <65dB | ||
| Filter step | 3 Step | ||
| HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter | ||
| Secondary filter | F8 pocket air filter | ||
| Pre-filter Efficiency | 75%@5um | ||
| Power supply | 380V/50HZ OR 220V/50HZ | ||
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Other type dispensing booth
All the types of the follow dispenisng booth is available.
Our company
KeLing Purification Technology Co., Ltd engaged in air purification filed for many years.It ia s Professional team for research and development clean room products whose sale air purification clean room equipments and clean room HVAC air filters.
