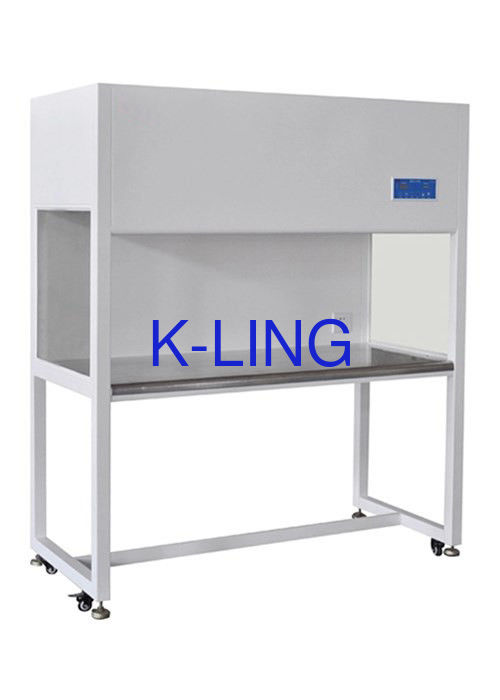

Class 100 CE Certification Laminar Flow Cabinets Vertical Laminar Flow Bench
Laminar Flow Cabinets Features:
1.Less vibration: The integration vertical clean bench adopts airflow forming principle of vertical unidirectional airflow, and combines the low noise centrifugal fan, the plenum chamber and the HEPA filter into a unit structure. Adopts high quality fan in low vibration.
2.Filter exchange intelligent reminder: Assembling manometer to indicate differential pressure, it can remind when to renewal the HEPA filter.
3.Low noise, maintenance free: Adopt adjustable air system which has little shock, stable, low noise, maintenance free and stable.
4.Rust and corrosion protection material: The cabinet is cold rolled steel with powder coated and the table-board is sand light stainless steel. Adopted glass baffle, LED show, electronic control board and touch switch in two sides.
Laminar Flow Cabinets Application:
Widely used in scientific research and production department which needs clean sterile working environment in local, such as medicine, bio-pharmaceutical, foodstuff, medical experiment, optics, electron, sterile laboratory, sterile microbial inspection, plant tissue culture etc.
Laminar Flow Cabinets Drawing
Technical Parameter
| MODEL |
KEL -VCB-2 |
|
External size (mm)
(WXDXH)
|
1200x700x1800mm |
|
Work zone (mm)
(WXDXH)
|
1100x650x600mm |
| Purification rank |
FS209E 100Rank |
| Rating airflow(m3/h) |
1800m3/h |
| Filtration efficiency |
More than 99.99%@0.3um H13-H14 |
| Average wind speed |
0.3-0.6m/s |
| Intensity of illumination |
>300lx |
| pressure gauge |
America Dwyer pressure watch 1 pcs |
| UV Light |
1 pcs |
| Fluorescent lamp |
30Wx1 |
|
Material
(Option)
|
1:Entirety Sus201/304.
2: External is steel with power coated, Internal is SUS304
4: External is steel with power coated. Internal is SUS301
|
| Power |
450w |
| Noise |
<65dB |
| Power supply |
110v/ 60HZ 220V-240V AC 50HZ |
Customer’s design is available.
