| Cleanliness Class: | ISO CLASS 100 | Material: | Stainless Steel304 |
|---|---|---|---|
| Filtration: | G4+H14 | Place Of Origin:: | GuangZhou CHINA |
| Endurance:: | > 3 Hrs | Warranty:: | 1 YEAR |
| High Light: | laminar flow clean bench,laminar air flow equipment |
||

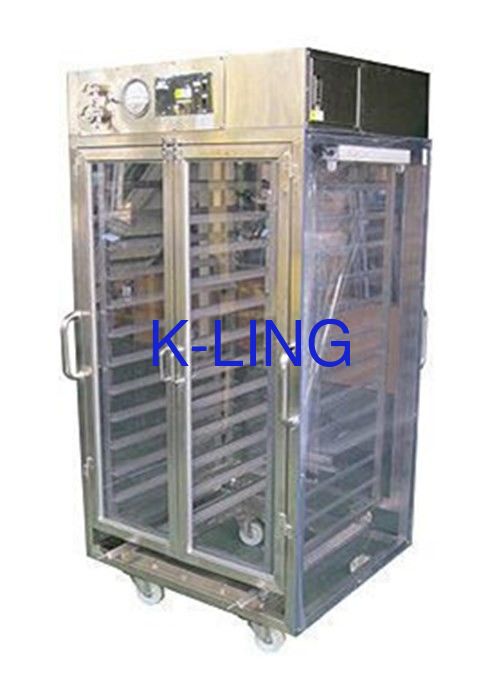

Class 100 Laminar Flow Cabinets Clean Room Trolley With Stainless Steel
Introduction
The Laminar Flow Clean Room Trolley provides a safe, economical, contamination-free way to transfer materials throughout a manufacturing facility.
The system's fan filter unit (FFU) ensures cleanroom conditions inside the storage area. Fan filter units can be equipped with a gel sealing HEPA filter (rated 99.99% efficient @ 0.3 µm particles) or an ULPA filter (rated 99.999% efficient @ 0.12 µm particles).
The system provides a continuous vertical laminar flow of filtered air through the storage area to ensure product integrity. Perforated stainless steel shelves allow air to flow through the cabinet. Any particles that enter the system when a door is opened are quickly purged through the bottom shelf.
Standard systems are available in several door and shelf configurations in 304 stainless steel. In addition, we offer a variety of applications-specific models made of acrylic, polypropylene, and other polymers to meet special requirements. Heavy-duty, nonshedding 6" (152 mm) casters provide smooth rolling over rough surfaces to safeguard delicate parts. Polyurethane bumpers protect the edges and corners of the cabinet.
Product Specification
|
Cleanliness Class
|
ISO CLASS 5
|
||
|
Material
|
SUS304 fingerprint-proof
|
||
|
Power
|
AC 220V/1PH
|
||
|
Filtration
|
G4+H14
|
||
|
Dimension(Nominal)
|
880 x 680 x 1150 mm (customizable)
|
||
|
Endurance
|
> 3 hrs
|
||
|
Explosive-proof Grade
|
EX d II BT4
|
||
|
Part No.
|
KEL-FT1
|
KEL-FT2
|
KEL-FT3
|
|
Material
|
SUS304 Fingerprint-proof
|
||
|
Input Voltage
|
AC 220V/1PH
|
||
|
Cleaness Class
|
ISO CLASS 5
|
||
|
Outer Dia
|
880*680*1850mm
|
1280*680*1850mm
|
1580*780*2050mm
|
|
Working Area Dia
|
800*600*700mm
|
1200*600*700mm
|
1500*700*700mm
|
|
Filter Efficiency
|
G4(EN779)
|
||
|
H14(EN1822)
|
|||
|
Avg.Air Velocity
|
0.36m/s~0.54m/s
|
||
|
Vertical Stroke
|
500-800mm
|
||
|
Touch Panel
|
Siemens
|
||
|
PLC
|
Simens/Mitsubishi
|
||
|
Wheel
|
4'PU
|
4'PU
|
6'PU
|
|
Pressure Guage
|
DWYER
|
||
|
Power
|
268W
|
326W
|
452W
|
|
Endurance
|
>4 hrs
|
>4 hrs
|
>3 hrs
|
|
Physical Obstruct
|
PC Makrolon/Stalinite
|
||
|
Air Velocity Transducer
|
0.75m/s
|
||
|
Glover
|
Optional
|
||
|
Gross Weight
|
97kg/214lbs.
|
127kg/280lbs.
|
186kg/410lbs.
|
|
Net Weight
|
79kg/174lbs.
|
104kg/229lbs.
|
152kg/335lbs.
|
Quality control
