| Material: | Stainless Steel 304/201/316 | Cleanliness Class:: | Class 100 |
|---|---|---|---|
| Endurance:: | > 3 Hrs | Warranty:: | 1 Year |
| Air Speed: | 0.45 M/s ±20% | Place Of Origin:: | GuangZhou China |
| High Light: | laminar flow clean bench,laminar air flow equipment |
||

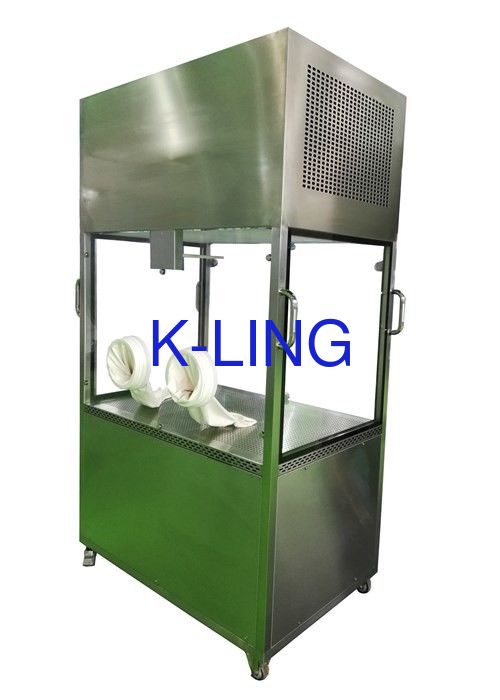

Class 100 Stainless Steel Laminar Flow Cabinets Vertical Laminar Flow Transport Cart
Introduction
Vertical Laminar Flow Transport Cart provides a safe, economical, contamination-free way to transfer materials throughout a manufacturing facility.
The system's fan filter unit (FFU) ensures cleanroom conditions inside the storage area. Fan filter units can be equipped with a gel sealing HEPA filter (rated 99.99% efficient @ 0.3 µm particles) or an ULPA filter (rated 99.999% efficient @ 0.12 µm particles).
The system provides a continuous vertical laminar flow of filtered air through the storage area to ensure product integrity. Perforated stainless steel shelves allow air to flow through the cabinet. Any particles that enter the system when a door is opened are quickly purged through the bottom shelf.
Standard systems are available in several door and shelf configurations in 304 stainless steel. In addition, we offer a variety of applications-specific models made of acrylic, polypropylene, and other polymers to meet special requirements. Heavy-duty, nonshedding 6" (152 mm) casters provide smooth rolling over rough surfaces to safeguard delicate parts. Polyurethane bumpers protect the edges and corners of the cabinet.
Features
1.304 Stainless steel construction ensures durability and cleanliness (electropolishing available)
2.Fan filter unit with gel sealing HEPA filter supplies downward laminar flow air
3.The air flow can be single pass exiting through the bottom of the cart or be recirculating to avoid the leakage of the air.
4.Convenient alternative to vacuum sealing, conveyor transport, and other transfer methods
5.Optional rechargeable power cell ensures uninterrupted fan filter unit operation for up to 4 hours, allowing for temporary relocation and storage
6.Ergonomic handles assist with maneuvering down hallways and through doorways
7.Heavy-duty, cushioned casters ensure smooth rolling over any industrial floor type
8.Stable lift platform
9.Isolator gloves allows the operation of hazardous
10.Differential pressure gages can monitor the filters
11.DOP port fixed upon your request, approval by CE test.
Product details
Technical Parameter
Customer's design is available.
| MODEL | KEL-LSC715A | KEL-LSC715B | KEL-LSC715C |
|
External size (mm) (W*D*H) |
715X1000X1900 | 715X1300X1900 | 715X1500X1900 |
|
Work zone (mm) (W*D*H) |
615X900X650 | 615X1200X650 | 615X1400X650 |
| Air speed | 0.45m/s +_20% | ||
| Purification rank | ISO5(Class A) | ||
| Control system | LCD Control board | ||
| Noise | 65dB | ||
| Illumination | >300lux | ||
| Power | 0.5kw | 0.7kw | 0.9kw |
