| Differential Gauge: | Dwyer Brand Guage (1 Pcs ) | Air Speed: | 0.45m/s ±20% |
|---|---|---|---|
| Purification Rank: | Class 100 | Power: | 0.5kw |
| Illumination: | >300lux | Place Of Origin:: | GuangZhou, China (Mainland) |
| High Light: | clean room cabinet,clean room chamber |
||

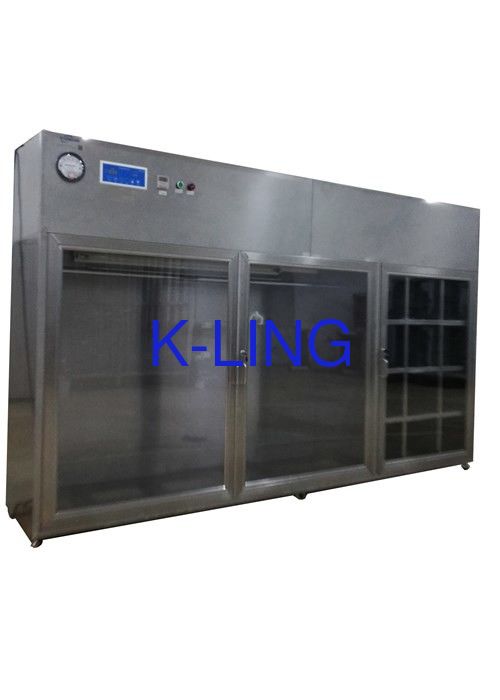

Customized Clean Room Equipments Vertical Laminar Flow Cleanroom Garment Cabinet
Vertical laminar airflow cabinet is composed of different components, including a working table, HEPA filter, fan, lighting system, and control panel. The working table is made of stainless steel or other corrosion-resistant materials and provides a sterile and clean working surface. The HEPA filter and fan create the laminar airflow, while the lighting system provides adequate illumination for laboratory workers. The control panel is used to regulate the airflow and lighting system.
Components
The main components of a vertical laminar airflow cabinet include the working table, HEPA filter, fan, lighting system, control panel, and side panels. The working table is made of durable materials and provides a clean and sterile surface for laboratory experiments. The HEPA filter and fan create a laminar airflow that removes any contaminants from the environment. The lighting system provides adequate illumination, while the control panel regulates the airflow and other parameters such as temperature and humidity.
Maintenance Principles
Vertical laminar airflow cabinet maintenance is critical to ensure its optimal performance. Maintenance principles include regular cleaning of the working table and surrounding areas, changing the HEPA filter, testing the airflow, and monitoring the temperature and humidity levels. Routine maintenance will extend the lifespan of the cabinet, reduce downtime, and improve the accuracy of laboratory experiments.
Technical Parameter:
Customer's design is available.
| MODEL | KEL-LFG800 | KEL-LFG900 | KEL-LFG1000 |
|
External size (mm) (W*D*H) |
800X500X1800 | 900X500X1800 | 1000X500X1800 |
|
Work zone (mm) (W*D*H) |
700X400X1300 | 800X400X1300 | 900X400X1300 |
| Air speed | 0.45m/s +_20% | ||
| Purification rank | ISO5(Class A) | ||
| Control system |
LED Control board function 1: Power on/ off 2: Air speed up and down 3: purification light and UV light control |
||
| Material | Stainless steel304 (t=1.2mm) | ||
| Differential gauge | Dwyer brand Guage (1 pcs ) | ||
| Hepa filter | Mini-pleats HEPA filter 99.99%@0.3um | ||
| Per-filter | Pleats panel filter (75%@2um( | ||
| UV light | 1 pcs | ||
| Noise | 65dB | ||
| Illumination | >300lux | ||
| Power | 0.5kw | 0.7kw | 0.9kw |
