380V 50HZ Laminar Flow Negative Pressure Weighing Hood For Pharmaceutical

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

380V 50HZ Laminar Flow Negative Pressure Weighing Hood For Pharmaceutical

380V 50HZ Laminar Flow Negative Pressure Weighing Hood For Pharmaceutical
380V 50HZ Laminar Flow Negative Pressure Weighing Hood For Pharmaceutical 380V 50HZ Laminar Flow Negative Pressure Weighing Hood For Pharmaceutical 380V 50HZ Laminar Flow Negative Pressure Weighing Hood For Pharmaceutical

Large Image :  380V 50HZ Laminar Flow Negative Pressure Weighing Hood For Pharmaceutical

Product Details:
Place of Origin: CHINA
Brand Name: K - LING
Certification: CE , RoHS
Model Number: HaoAir - WB1300
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Polywood packing
Delivery Time: 7 - 10 Working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200pcs / month
Detailed Product Description
Name: Weighing Booth External Size(W*D*H): 1300x1300x2300mm
Internal Size(W*D*H): 1200x800x1900mm Cleanliness: Class 100
Air Velocity: 0.3-0.6 M/s Power: 380V 50HZ
High Light:

pharmaceutical weighing booth

,

downflow booth

Class 100 Laminar Flow Negative Pressure Weighing Booth For Pharmaceutical



Introduction :



Negative pressure weighing booth is a kind of partial purifying equipment for filling , refilling , weighing and sampling of raw material and compounds for the pharmaceutical , microbiological research and scientific experiments . The weighing hood provides a vertical unidirectional airflow , clean air circulation in the work area , partly discharged to the nearby area , so that the work area produce negative pressure to prevent cross contamination in order to ensure the high clean class level of the working area . The unit eliminates powder contamination to protect the operator and the surrounding environment . Weighing booth is also called sampling booth or dispensing booth .





Application :



Biological pharmaceutical , microbiology research and scientific experiments .





Features:



1. Weighing Booth ( Sampling booth or dispensing Booth ) has primary filters , medium efficiency filters and HEPA filters to keep air cleanliness of work area .

2. The dispensing booth is entirely SUS 304 / 201 , or power coated steel , which is complying with GMP Request . The surface is fully polished .

3. Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products .

4. Three filtrations , including Primary filter , Medium filter , Heap filter .





Photograph :

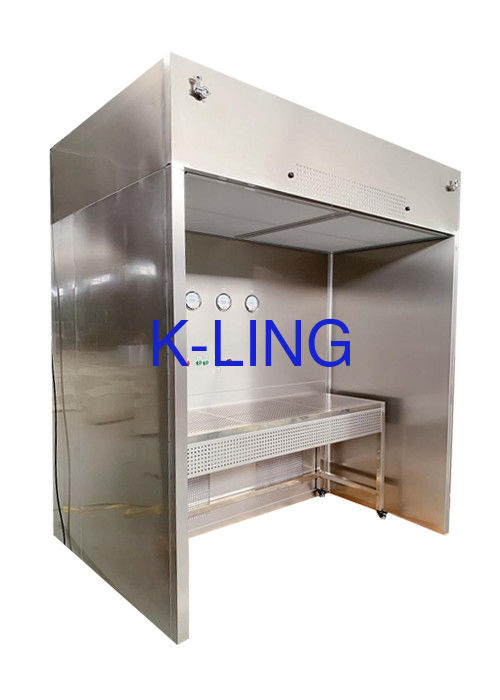

380V 50HZ Laminar Flow Negative Pressure Weighing Hood For Pharmaceutical 0

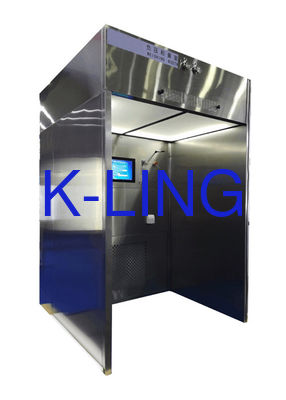

380V 50HZ Laminar Flow Negative Pressure Weighing Hood For Pharmaceutical 1



Parameters :





 Weighing Booth
Model HaoAir - WB1300 HaoAir- WB1500 HaoAir- WB2000
External size (W*D*H)mm 1300X1300X2300 1500X1500X2300 1800X1500X2300
Internal size (W*D*H)mm 1200X800X1900 1400X1000X1900 1700X1000X1900
Cleanliness Class 100
HEAP Filter 99.995% @0.3um
Pre-Filter 75% @5um
Air Velocity 0.3-0.6m/s
Noise 57-65 dB
Material Stainless Steel 304, stainless steel 201, power coated steel
Standard ( FS209E ) USA
Power 380V/ 50HZ





About Us :

GuangZhou HaoAir Purification Technology Co., Ltd is a professional manufacturer in air purification field for many years in China. Our products with good quality, reasonable prices and custom design.
Our main products include the cleanroom air shower , cargo air shower , static pass box , dynamic pass box , dispensing booth , vertical / horizontal laminar air flow clean cabinet , air filter,etc. AII of products can be customized.
Our customers come from Pakistan , Chile , India , Algeria , Nigeria, Italy , Czech Republic , ect.



380V 50HZ Laminar Flow Negative Pressure Weighing Hood For Pharmaceutical 2



380V 50HZ Laminar Flow Negative Pressure Weighing Hood For Pharmaceutical 3
