| Name: | Sampling Booth | External Size(W*D*H)mm: | 715x715x1950 |
|---|---|---|---|
| Internal Size(W*D*H)mm: | 615x615x1450 | Purification Rank: | Class 100-1000,000 |
| Frame Material: | Stainless Steel Or Power Coated Steel | Power Supply: | 110/220V 50/60HZ |
| High Light: | Laminar Flow Booth,portable clean room |
||

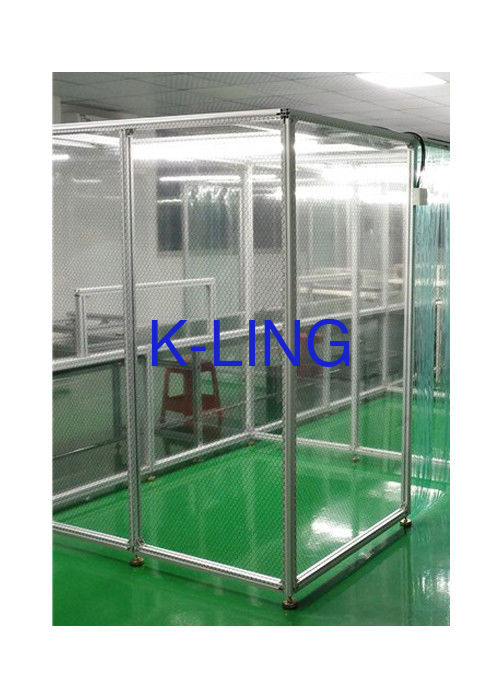

Flexible And Moveable Class 100 Sampling Booth in the Pharmaceutical
Introduction :
Sampling booth is a special designed room to exclude the particles in the air , bacteria and other harmful air pollutants in the air , and the indoor temperature , cleanliness , interior pressure , air velocity and air distribution , noise , vibration , and lighting , static control are within the scope of a certain demand . That is no matter how the outside air conditions change , its indoor all can maintain the original set requirements of cleanliness , temperature and humidity and pressure performance characteristic .
Application :
It is used for the workshop quest the higher level of purification level , such as the assembly line working area and the assembly area of high-precision products .
Features :
1. Compared to the tradtitional clean booth it is easy to installation , cost effective with less investment and quick return , as it cost shorter construction period in the assembling frame by manufacturer . Assembly structure design , easy installation and easily moved .
2. The frame materials of softwall cleanroom are multi-selected , such as stainless steel , steel with power coated and cast aluminum profile . Besides , the tempered glass and pvs anti-static curtain are available . It’s convenience for installation and maintenance .
3. Directional wheels can be installed , suitable for small building and high cleanliness area .
4. Less restrictions or low requirements for the floor and site condition , the inner space is enough to use and the frame can be recycled .
Paragraph :
Parameter :
| Sampling Booth | ||
| Model | HaoAir –SB715 | HaoAir -SB930 |
|
External Size (W*D*H)mm |
715X715X1950 | 930X710X1950 |
|
Internal Size (W*D*H)mm |
615X615X1450 | 830X610X1450 |
| Purification Rank | Class 100-100,000 (ISO14644) | |
| Hepa Efficiency | 99.99% @0.3um – 99.999% @0.12um (MPPS) | |
| Pre-filter Efficiency | 85% @2um | |
| Wall | Tempered Glass / PVC Anti-Static Curtain | |
| Frame Material | Stainless steel / Steel with power coated | |
| Basic Table | Stainless Steel 304/201 | |
| Power Supply | 110/220V 50/60HZ | |
Following options are available :
1. Pass box
2. Air shower
3. ULPA filter
4. Sticky mats
5. Dressing area
6. Pressure different control device
7. Transparent/grid PVC curtain
8. Thermo-static and humid-static air conditioning system.
