Payment & Shipping Terms:
|Field Of Application:||Pharmaceutical, Microbiology Research And Scientific Laboratories||Average Wind Speed:||0.3-0.7 M/s|
|Intensity Of Illumination:||≥300 Lux||Power:||380V/50HZ|
|External Size:||2000×2200×2650mm||Internal Size:||1900×1900×2150mm|

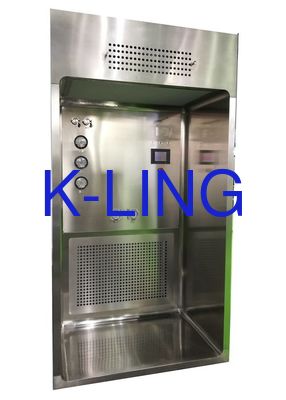

Dispensing booth is assembled from a working area, a return air box body, a wind box body, an air outlet box body and an outer box body. The control panel is located on the front of the internal working area of the device. The control panel adopts the light touch LED control panel, which can control the fan to start and stop, adjust the fan working condition, and adjust the wind speed required by the working area .There is a differential pressure gauge next to it to test the resistance of the filter. There is also an exhaust air conditioning plate inside the air supply box, which can adjust the air exhaust volume of the equipment within a reasonable range.
1. The cabinet is made of high quality SUS304 stainless steel, which is easy to clean
2. Top air supply, high efficiency filter efficiency ≥email@example.com, the operating area purification level is higher than the room cleanliness;
3.The frequency converter adjusts the wind speed of the fan;
4. Button controls lighting and power supply;
5. Install differential pressure gauges to monitor the use of the filter;
6. Adding a DOP test port can effectively detect the integrity of the high-efficiency filter;
7. The modular sampling design of the cabinet is detachable on-site assembly.
1.Filter: three-stage filtration of primary, middle and high-efficiency filters, high-efficiency filter of liquid tank (efficiency: firstname.lastname@example.orgμm), which can meet the testing requirements of DOP or PAO;
2.Differential pressure gauge: domestic
3. Polymer homogenizer: significantly improve the uniformity of wind speed on the wind surface;
4.Control part: the frequency converter adjusts the wind speed and the button controls the lighting, power supply and emergency stop;
5. Illumination: The average illuminance on the one meter plane of the ground within the weighing distance is greater than 300 Lux.
6.Weighing platform: place the electronic balance and fill in the record (optional)
7.Socket: Waterproof and dustproof socket, grade: IP66. The quantity is configured according to customer needs.
External size (mm)
Work zone (mm)
|Purification rank||Class 100(ISO5)|
1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm)
2: External and internal side is steel with power coated. (T=1.2/1.5mm)
|Intensity of illumination||≥300 Lux|
|Filter step||3 Step|
|HEPA filter||99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter|
|Secondary filter||F8 pocket air filter|
|Power supply||380V/50HZ OR 220V/50HZ|
|Packing material||Standard Export Poly wood Packing(Fumigant free material)|
Customer's design is available.
Other types of dispensing booth
Our company also produces the following types of dispensing booth and we can also design and produce according to your needs.
