Payment & Shipping Terms:
|Name:||Dispensing Booth||External Size (W*D*H):||1100X1300X2650mm|
|Internal Size (W*D*H):||1000x1000x2150mm||Purification Rank:||Class 100|
|Air Velocity:||0.3-0.6 M/s||Material:||Stainless Steel 304 / 201|

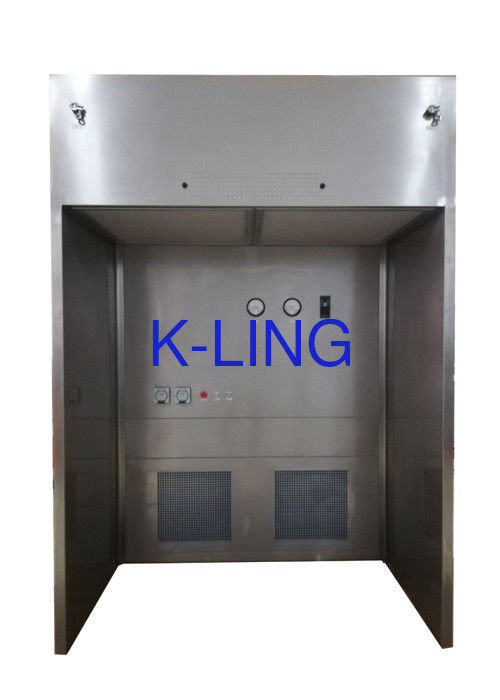

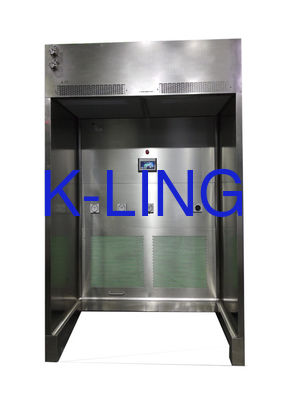

Factory Custom Stainless Steel Dispensing Booth For Biological Pharmacy
Dispensing Booth is a special local purification equipment used in pharmaceutical, microbiology research and scientific experiments . It provides a vertical unidirectional airflow . Part of the clean air circulates in the working area and is partially discharged to the nearby area to make work . The area generates negative pressure to prevent cross - contamination and is used to ensure a high cleanliness Class environment in the work area . Dust , reagent weighing and dispensing in the equipment can control dust , reagent spillage and uplift , prevent dust and reagents from inhaling harm to the human body , avoid cross-contamination of dust and reagents, and protect the environment and indoor personnel .
The dispensing booth is composed of a main body such as cover body , static pressure box , blower box body , current sharing film, PAO detecting port , touch screen , differential pressure sensor , fan and an illumination lamp.
Biological pharmaceutical , microbiology research and scientific experiments
Operation features :
1. The dispensing booth is entirely SUS304 / 201 , complying with GMP Request . The surface is fully polished .
2. Three filtrations , including Primary filter , Medium filter , Heap filter .
3. Peripheral initial pressure difference table , medium efficiency differential pressure gauge , high efficiency differential pressure gauge; effectively monitor filter blocking state.
4. Adopt manual frequency conversion speed control system , effectively control the wind speed (0.3m/s-0.6m/s).
5. Voltage - compensating blowers ensure air flow .
|Model||KEL - DB1000||KEL - DB1500||KEL - DB2000|
|External size (W*D*H)mm||1100X1300X2650||1600X1800X2650||2100X2300X2650|
|Internal size (W*D*H)mm||1000X1000X2150||1500X1500X2150||2000X2000X2150|
|HEAP Filter||99.995% @0.3um|
|Material||Stainlesst Steel 304 / 201|
|Standard||( FS209E ) USA|
