| Name: | Dispensing Booth | Material: | Stainless Steel |
|---|---|---|---|
| Purification Rank: | Class 100 | Standard: | (FS209E)USA |
| Noise: | 57-65dB | Start Port: | Guangzhou, Shenzhen, Shanghai |
| High Light: | pharmaceutical weighing booth,downflow booth |
||

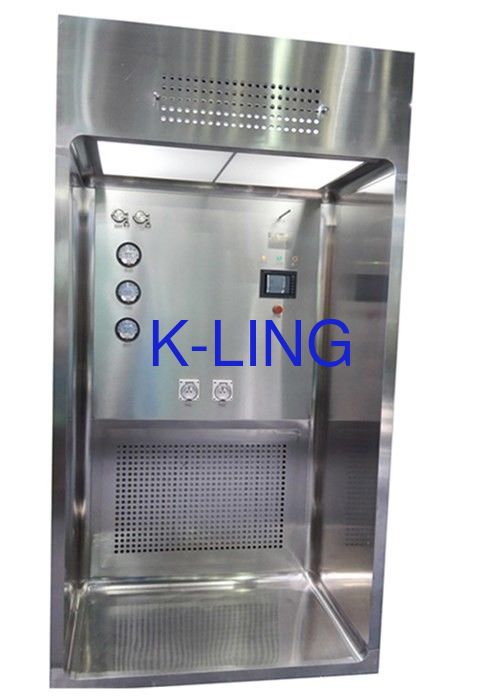

Equipment Features And Uses
The dispensing booth is a special purification device for pharmacy, microbiology research and scientific experiments.It passes the air through the primary filter and the intermediate filter. The centrifugal fan presses the air into the static pressure box. After the high efficiency filter, the air diffuses to the outlet surface and blows out, forming the vertical unidirectional air flow.Part of the clean air circulates in the work area, partially discharged to the nearby area, which creates a negative pressure in the work area to prevent cross-contamination and is used to ensure a high cleanliness environment in the work area.
Dust, reagent weighing and dispensing in the equipment can control dust, reagent spillage, rise, prevent dust, reagents to the human body, and avoid dust, reagent cross-contamination, protect the environment and the safety of indoor personnel.
Use Environment And Conditions
Temperature: 5 ° C ~ 40 ° C
Relative humidity: no more than 85% (non-condensing)
Atmospheric pressure: 86kpa-106kpa
Technical Parameter
customer's design is available!
| MODEL | KEL-DB1000 | KEL-DB1500 | KEL-DB2000 |
| External size (mm)(W*D*H) | 1100x1300x2650mm | 1600x1800x2650mm | 2100x2300x2650mm |
| Work zone (mm)(W*D*H) | 1000x1000x2150mm | 1500x1500x2150mm | 2000x2000x2150mm |
| Purification rank | Class 100 | ||
| Air speed | 0.2-0.6m/s | ||
| Material(Option) | 1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) | ||
| 2: External and internal side is steel with power coated. (T=1.2/1.5mm) | |||
| Control system | 1: Air Speed according to frequency converter control . | ||
| 2: Gel Sealant High Efficiency HEPA air filter for high purification rank | |||
| 3: Wind speed detection, Constant temperature and constant humidity | |||
| Detector according to client request install | |||
| 4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time | |||
| 5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens . | |||
| 6; GMP Modular design with minimized joints and seams. | |||
| 7: PVC strip curtains available | |||
| 8; Energy Efficient high air volume fan to minimize operating cost, | |||
| Noise level(dB) | <65dB | ||
| Filter step | 3 Step | ||
| HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter | ||
| Secondary filter | F8 pocket air filter | ||
| Pre-filter Efficiency | G4 Z-Line panel air filter | ||
| Power supply | 380V/50HZ OR 220V/50HZ | ||
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Product Design Drawing
This is the design drawing of one of the KEL-DB series of dispensing booth. Our company can customize the dispensing booth according to your specific requirements.
Production Picture
Keling Purification Technology Co.Ltd engaged in air purification field for many years.It is a Professional team for research and development clean room products.The following is the production picture of the dispensing booth.
Product Loading Pictures
Our company has professional product packaging and transportation methods. Products can be protected from damage during transportation.
