| Name: | Dynamic Pass Box | External Size ( W*D*H ): | 700X570X1050mm |
|---|---|---|---|
| Internal Size ( W*D*H ): | 500X500X500mm | Air Velocity: | 0 . 45 M / S ( Adjustable ) |
| HEPA Filter: | Mini - Pleats Gel Sealant HEPA Filter | Accessories: | DOP / PAO Test Port And Differential Pressure Gauge |
| High Light: | clean room pass through box,Pass Thru Box |
||

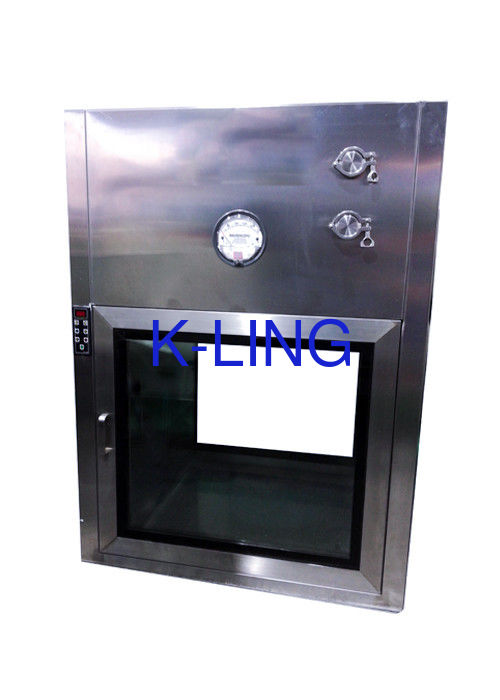

Stainless Steel Dynamic Pass Box With DOP And Differential Pressure Gauge
Introduction :
Dynamic Pass Box is a kind of auxiliary equipment of clean room , used for cargo transfer between different clean level cleanrooms . Dynamic Pass Box can reduce the times to open the door so as to ensure the cleanliness in the clean room . It can remove the dust on the surface of articles . Meanwhile , this pass box can also prevent unpurified air getting into clean zone . Client can choose to add UV light, buzzer and bottom plate . We can also design non-standard size of pass box as client's specific needs .
Applications :
Biological pharmacy , Tissue culture , Scientific research institute , Center for disease control ( CDC ) , Hospitals , Chemical industry .
Operation features :
1. All components are designed for maximum chemical resistance and enhanced durability for a long service life . The surface material of Dynamic pass box can be chose stainless steel or steel with power coated .
2. It is constructed of stainless steel inside in circular arc form . The arc design in the inner circumference is to ensure a seamless connection line , making the work zone easy to clean and endurable .
3. Microprocessor controller and automatic control system , Two level filtration system ( Pre-filter , HEPA filter ) .
4. Laminar flow design adopts the ceiling air supply and lower side return mode of air distribution .
5. Double - layer glass has a smooth , glossy surface , which is both aesthetical and safe for users .
6. The internal bottom is optional to adopt to the stainless steel plate or non - power drum .
7. This dynamic pass box contains differential pressure gauge and PAO / DOP test port .
8. Electronic interlock shall reduce contamination from the low cleanliness area .
9. With Buzzer , alarm independently ( when the filter exceed 250 - 300Pa ) .
10. It shall be installed in the wall or supported by bracket .
11. Special sealing trip is installed to ensure air tightness .
12. Low vibration and low noise .
Phtpgraphs :
Parameter :
| Dynamic Pass Box | |||
| Model | KEL - DPB500 | KEL - DPB600 | KEL - DPB700 |
|
Internal Size ( W * D * H ) mm |
500x500x500 | 600x600x600 | 700x700x700 |
|
External Size ( W * D * H ) mm |
700x570x1050 | 800x670x1150 | 900x770x1250 |
| Air Velocity | 0.45m / s ( Adjustable ) | ||
| HEPA Efficiency | 99.995 % @ 0.3um ( GB50073 / ISO14644 - 1 ) | ||
| HEPA Filter Type | Mini - Pleats Gel Sealant HEPA Filter | ||
| Test port | External PAO / DOP Test port | ||
| Differential pressure gauge | 1 Set ( Dwyer brand ) | ||
| Inner bottom | Arc Shaped | ||
| Interlock | Micro - computer interlock | ||
| Material | SUS 304 / 201 or steel with power coated ( T = 1.0 / 1.2 / 1.5mm) | ||
| Power | 150 - 350W 220V / 50HZ | ||
