Product Details:
Payment & Shipping Terms:
|
| Name: | Customized Air Shower | Material: | Coldrolled Steel With Bake Painting |
|---|---|---|---|
| Person Per Cycle: | 1-3 Person | Air Speed: | >25m/s |
| Application: | Workshop | Nozzle Qty: | 16pcs |
| High Light: | semiconductor clean room,lab clean room |
||

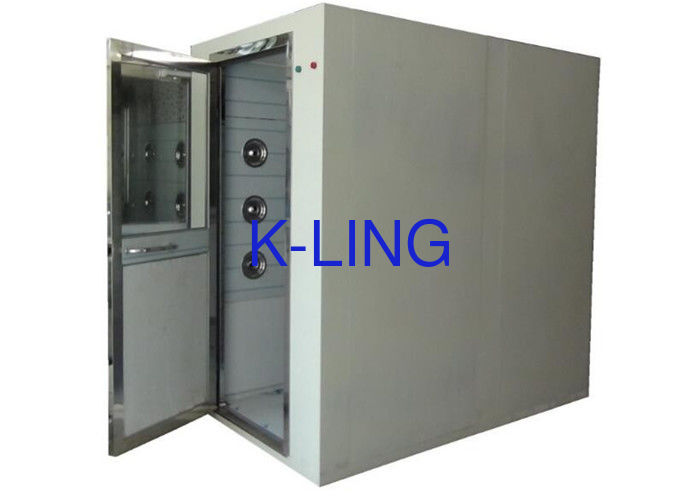

Coldrolled Steel With Bake Painting Customized Air Shower For Clean Room
Air Shower Description:
Air Showers are used to remove contaminate off personel and equipment as they enter a clean environment or exit a contaminated environment. Air showers also create a protective barrier between the clean and contaminated areas.
KELING offers a wide variety of sizes and construction materials in order to offer the most customized and affordable product for each individual need.
KELING has been designing and manufacturing Air Showers and Pass Thrus for the cleanroom and contamination control industry worldwide for over 12 years.
Air Shower FEATURES:
1,Fully auto controlled by computer, 2 electronic interlocking door, automatically blow and shower.
2,Duration for showering can be adjusted from 0 second to 99 seconds with time display and voice prompt.
It is easy to operate with membrane touch switches.
3,Floor and nozzles are made of quality stainless steel.
4,99.99%@0.3μm, Efficiency can reach 99.99%@0.3μm with pre filter and hepa filter.
5,20m/s air velocity can up to 25m/s. professional and fast design, non-standard products.
Air Shower Alternative configuration:
a. Stainless steel construction
b. Intercom
c. Ultraviolet sterilizing lamp/yellow light
d. Buzzer
e. Non-flooring-plate design (easy for light- weight vehicle in and out)
f. Automatic door
g. Non-standard air shower cleanroom is available
Air Shower Specification:
Customer Design is Available.
| MODEL | KEL-AS1300P1 | KEL-AS1300P2 | KEL-AS1300P3 | |
|
External size (mm) (W*D*H) |
1300x1000x2180mm | 1300x2000x2180mm | 1300x3000x2180mm | |
|
Work zone (mm) (W*D*H) |
800x930x1910mm | 800x1930x1910mm | 800x2930x1910mm | |
| Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
|
Material (Option) |
1:Entirety Sus304.(T=1.0/1.2/1.5mm) 2:Entirety sus201. (T=1.0/1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.0/1.2/1.5mm) 4:External is steel with power coated. Internal is SUS201(T=1.0/1.2/1.5mm) |
|||
| Control system |
1: Control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable) 3: Infrared ray inductor for inside personal shower automatic. 4: Three side blowing with Human voice prompt system. 5: with CE remark. |
|||
| The power of fan |
380V/50HZ/0.75KW (2 set) |
380V/50HZ/0.75KW (4 sets) |
380V/50HZ/0.75KW (6sets) |
|
| Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
| Fan run (r/min) | 2800 | 2800 | 2800 | |
| Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
| Wind speed(m/s) | >25m/s | |||
| Noise level(dB) | <75dB | |||
| HEPA FILTER | Size(mm) |
630X630X80mm (2 sets) |
630X630X80mm (4 sets) |
630X630X80mm (6 sets) |
| Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | |||
| Air velocity | 1000(m3/h) | |||
| Initial resistance(pa) | <180pa | |||
| Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
| Efficiency (%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
| G3 | G3 | G3 | ||
| resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
| parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P | 380v/50HZ 3P |
| Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
| packing size (mm) | 1350x1200x2250mm | 1350x2200x2250mm | 1350x3200x2250mm | |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
| Weight | 320kgs | 650kgs | 960kgs | |
