| Name: | V-Bank Active Carbon Filter | Size: | 610X305X292mm |
|---|---|---|---|
| Pack: | 5 | Air Flow: | 1800 M³/h |
| Media Area: | 14.4 | Dust Holding: | 870g |
| High Light: | industrial air filters,home air filters |
||

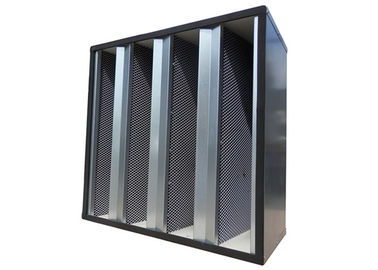

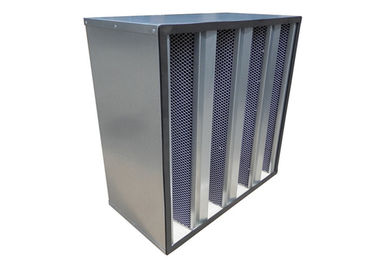

Industrial V-Bank Active Carbon Filter For Air Conditioning System
The V-Bank Active Carbon Filter is designed to efficiently remove particulates that contaminate the indoor air as well as a wide range of odors at high air flows.
Activated Carbon is a highly porous charcoal product which undergoes activation process using oxygen to open up millions of small pores within the carbon grain structure.
This significantly increases activated carbons’ ability for adsorption of other chemicals, which bond to the large amount of open pore surface within the activated carbon granules.
V-Bank Active Carbon Filter Features:
1.Activated carbon filters are for upgrading systems to add carbon filtration with the lowest cost per unit.
2.These filters are highly effective for removing VOCs and controlling odours and can be applied as an excellent pre-filter for use in commercial and industrial HVAC systems.
V-Bank Active Carbon Filter Applications:
1.Airport, luxury hotels, office buildings,Pharma, food, shopping malls and other commercial and residential buildings.
2.Museums, libraries, art galleries, computer room and other air conditioning systems.
3.Solution to acid gases (H2S, SO2,NOx,HCL,CL2,F2).
V-Bank Active Carbon Filter Specification:
| Size (W*H*D) | Pack | Rate Air Flow(m3/h) | Primary Resistance | Active Carbon Net Weight(kg) |
Odor Removal Efficiency |
| 592x287x292 | 3 | 2800 | 300pa | 22.04 | 95% |
| 592x592x292 | 4 | 3700 | 300pa | 29.38 | 95% |
| 592x490x292 | 4 | 3080 | 300pa | 29.38 | 95% |
| 592x490x292 | 5 | 3850 | 300pa | 36.73 | 95% |
| 592x592x292 | 5 | 4700 | 300pa | 36.73 | 95% |
| 610x610x292 | 5 | 4800 | 300pa | 37.85 | 95% |
| 287x287x292 | 2 | 900 | 300pa | 7.12 | 95% |
| 287x490x292 | 3 | 1300 | 300pa | 10.69 | 95% |
| 490x490x292 | 3 | 2300 | 300pa | 18.24 | 95% |
| 490x592x292 | 4 | 3100 | 300pa | 24.32 | 95% |
| 287x592x292 | 4 | 1800 | 300pa | 14.25 | 95% |
| 592x592x292 | 3 | 3200 | 300pa | 22.04 | 95% |
| 610x305x292 | 3 | 2900 | 300pa | 22.71 | 95% |
| 305x610x292 | 5 | 2400 | 300pa | 18.93 | 95% |
| 484x484x292 | 3 | 2300 | 300pa | 18.02 | 95% |
| 630x630x292 | 5 | 5000 | 300pa | 39.09 | 95% |
Activated Carbon Air Filter for Industry is mainly used as the pre-filter of air conditioner system in commercial and industrial field.
