Washable High Capacity Pleated Air Filter For Ventilation / Pleated Ac Filters

Washable High Capacity Pleated Air Filter For Ventilation / Pleated Ac Filters
Washable High Capacity Pleated Air Filter For Ventilation / Pleated Ac Filters Washable High Capacity Pleated Air Filter For Ventilation / Pleated Ac Filters

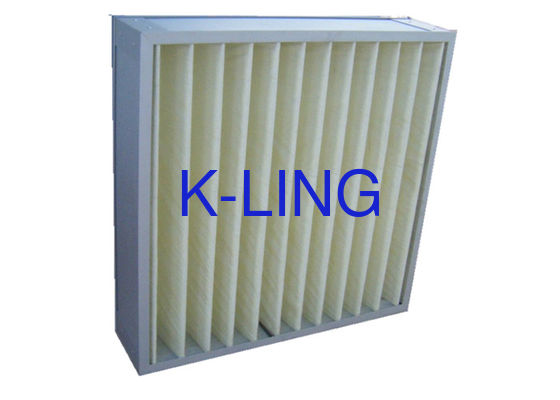

Large Image :  Washable High Capacity Pleated Air Filter For Ventilation / Pleated Ac Filters

Product Details:
Place of Origin: China
Brand Name: KELING
Certification: SGS
Model Number: KEL-WPA001
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Standard carton and Polywood packing
Delivery Time: 7-15 working days for sample order
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs per month
Detailed Product Description
Name: Washable Primary Filter Size: 592X592X46mm
Air Flow: 3200m³/h Media Area: 0.82 Sq.m
Dust Holding: 90g Efficiency: G1
High Light:

pleated media filter

,

pleated air filters hvac

G1-G4 Washable Primary Filter For Ventilation and Air Conditioning Systems



The washable pleated filters are designed for general use in ventilation and air conditioning systems in hospitals, office blocks, hotels, factories, AHU’s or areas where there is a high dust content.
They can also function as a pre-filter to secondary and tertiary filters.
The washable pleated panel filter is made from nonwoven needle punched synthetic media and this is fixed within a galvanised channel frame with urethane, ensuring no air bypass.
The supporting wire is sandwiched between two filter medias of varying density


Washable Primary Filter Features:
1.Removable outer frame design
2.High dust loading capacity
3.Superipr washable media(wash 2-3 times as recommended)
4.Efficiency:G2/G3/G4/F5(EN779)
5.High strength
6.Washable primary panel filter is made of high quality polyester media and light frame.
It has low pressure drop and high fire resistance.



Washable Primary Filter Applications:
1.As a pre-filter in the AHU and AC ventilation system to prevent the accumulation of dust within the system.
2.As a pre-filter in a huge size air compressor.
3.As a pre-filter in the AHU and AC ventilation system of a clean room to prolong the service life of secondary or tertiary filters.
4.As a main filter in the ventilation system of an industrial plant.
5.As a pre-filter in the AHU and AC ventilation system in transportation hubs.





Product Specification:



Customer size is available.



Dimension

(W*H*D)

(mm)

air flow

(m3/h)

Media area

(m2)

Dust hold

(g)

Initial resistance

Finally resistance

(Pa)

Efficiency



592x592x46



3200



0.82

90























<30-50pa























100-200pa























G1-G4

110
130
170



287x592x46



1600



0.44

50
60
70
90



490x592x46



2700



0.7

80
90
110
140



592x592x96



3600



1.01

110
130
160
200



287x592x96



1800



0.5

55
65
80
100



490x592x96



3100



0.88

100
120
140
180



Washable High Capacity Pleated Air Filter For Ventilation / Pleated Ac Filters 0

Washable High Capacity Pleated Air Filter For Ventilation / Pleated Ac Filters 1
