| Name: | V Cell Air Filter | Size: | 287X287X292mm |
|---|---|---|---|
| Pack: | 2 | Air Flow: | 900 M³/h |
| Media Area: | 4.63 Sq.m | Dust Holding: | 280g |
| High Light: | industrial air filters,home air filters |
||

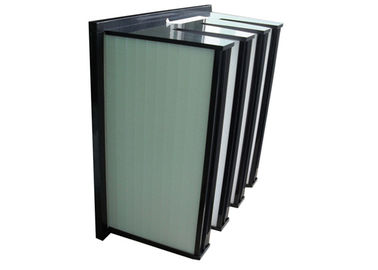

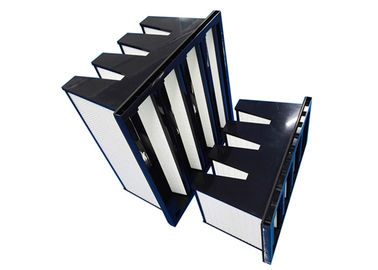

High Performance V Cell Compact Air Filter MERV13 For Clean Room
V-Cell Filters are high-efficiency air filters designed to handle virtually any HVAC application.
Each filter utilizes a technologically advanced media that incorporates a dual-layer, gradient-density fiber structure that results in exceptionally low airflow resistance, at the highest efficiency levels-reducing both energy and operating costs.
These high-performance filters will improve indoor air quality and remove contaminants from HVAC environments.
V Cell Compact Air Filter Features:
1.Provides lower initial resistance
2.Provides lower energy consumption
3.Provides lower operating cost
4.Meets requirements for LEED certifi cation
5.Provides an economical and higher efficiency upgrade for most applications
V Cell Compact Air Filter Applications:
1.Commercial and industrial facilities
2.Pharmaceutical
3.Government and educational facilities
4.Hospitals
5.Paint booth/fi nishing
Product Specification:
|
Dimension (W*H*D) (mm) |
Pack |
Air flow (M3/h) |
Media area (m2) |
Holding dust(g) |
Primary resistance (by0.5m/s) |
Final resistance |
Efficiency (0.3um) |
| 287X287X292 | 2 | 900 | 4.63 | 280 | 〈60 | 250-300 | F6 |
| 〈80 | 300-400 | F7 | |||||
| 〈100 | 300-400 | F8 | |||||
| 〈120 | 400-450 | F9 | |||||
| 592X592X292 | 3 | 2850 | 15 | 900 | 〈60 | 250-300 | F6 |
| 〈80 | 300-400 | F7 | |||||
| 〈100 | 300-400 | F8 | |||||
| 〈120 | 400-450 | F9 | |||||
| 592X592X292 | 4 | 3800 | 20 | 1200 | 〈60 | 250-300 | F6 |
| 〈80 | 300-400 | F7 | |||||
| 〈100 | 300-400 | F8 | |||||
| 〈120 | 400-450 | F9 | |||||
| 592X490X292 | 4 | 3100 | 16.44 | 1000 | 〈60 | 250-300 | F6 |
| 〈80 | 300-400 | F7 | |||||
| 〈100 | 300-400 | F8 | |||||
| 〈120 | 400-450 | F9 | |||||
| 592X287X292 | 4 | 1750 | 9．26 | 550 | 〈60 | 250-300 | F6 |
| 〈80 | 300-400 | F7 | |||||
| 〈100 | 300-400 | F8 | |||||
| 〈120 | 400-450 | F9 |
