Cleanroom Project Softwall Modular Cleanrooms For Biological Engineering

Cleanroom Project Softwall Modular Cleanrooms For Biological Engineering
Cleanroom Project Softwall Modular Cleanrooms For Biological Engineering Cleanroom Project Softwall Modular Cleanrooms For Biological Engineering

Large Image :  Cleanroom Project Softwall Modular Cleanrooms For Biological Engineering

Product Details:
Place of Origin: China
Brand Name: KELING
Certification: CE
Model Number: KEL-SC Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Polywood packing
Delivery Time: 7-15 working days for sample order
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 800 Sets per month
Detailed Product Description
Name: Portable Clean Room External Size: 3000X3000X2596mm
Internal Size: 2900X2900X2250mm Wall: PVC Anti-static Curtain
Fan: EBM/Taiwan Application: Beverage Workshop
High Light:

Laminar Flow Booth

,

portable clean room

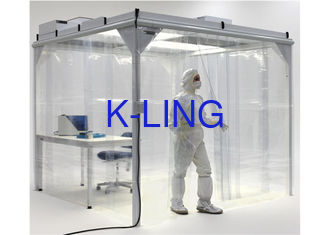

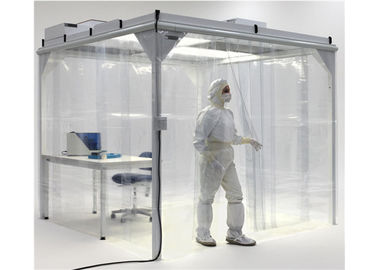

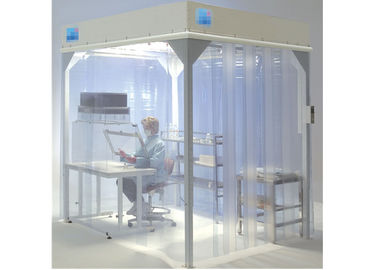

Cleanroom Project Softwall Modular Cleanroom For Biological Engineering



CUSTOMIZED DESIGN IS AVAILABLE





CleanZones, LLC offers our Softwall Cleanroom with the latest design considerations for ease of assembly and use. These Softwall Clean Rooms are available as a pre-designed and engineered system to meet every application. The Softwall Cleanroom can be easily installed in any location to provide a Clean Environment where you need it. They are used for electronic assembly, medical device assembly, product isolation, spot cleanliness over fill line applications in every conceivable size and room cleanliness classification. The standard unit is composed of a Clear Satin Anodized Aluminum Frame for an aesthetically pleasing look with minimum maintenance. Units are available with floor anchors, leveling feet or casters for portable applications.



Unlike permanent, hard wall cleanroom systems, soft wall cleanrooms feature plastic, often translucent strips suspended from a ceiling or other high point of attachment. They can also be enclosed by tightly stretched fabric on a frame.

Semiconductor fabrication, medical testing, biotechnology research, and other very sensitive processes can be conducted in soft wall cleanrooms. Many processes that don’t require extreme levels of decontamination can be conducted within soft wall cleanrooms.

They are often easily installed, and some varieties are portable; these qualities can make soft wall cleanrooms more economical than hard wall alternatives, especially for smaller-scale operations that don’t require constant access to a strictly controlled working environment. When combined with other control measures like protective clothing for workers (such protective clothes are sometimes called bunny suits), air filters, and double doors, soft wall cleanrooms are capable of achieving high levels of decontamination.

Features

  • Cleanliness from Class 100 – 100,000
  • Clear Satin Anodized 6063-T5 Aluminum Frame
  • Clear Solid Softwall Vinyl curtains around perimeter with strip entrances as required for entry/exit
  • Mac-10 HEPA Fan Filter Unit
  • Sealed Cleanroom Light Troffers to provide 100 foot candles at working height level
  • Heavy duty 1-1/2” clear satin anodized aluminum ceiling support T-grid
  • Gasket for ceiling supplied to insure a positive seal
  • Pre-wired prior to shipping with light/FFU switch, power cord(s) or junction box
  • Designed to meet ISO Cleanroom Air Cleanliness standards
  • Many options are available for these systems including clear antistatic vinyl curtain for static concerns or all stainless steel frames for pharmaceutical applications.
  • Technical Parameter:
  • MODEL KEL-LFB2000 KEL-LFB3000 KEL-LFB4000 KEL-LFB5000

    Ex size (mm)

    (W*D*H)

    2000X2000X2596 3000X3000X2596 4000X4000X2596 5000X5000X2596
    In size (mm) 1900x1900x2205 2900x2900x2205 3900x3900x2205 4900x4900x2205
    Purification rank Class10-300,000(FS209E USA)
    HEPA filter Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS)
    Pre-filter Efficiency : 85% @ 5um
    Control system PC control system / promised speed by control box
    Pressure Gauge American Dywer pressure
    Noise <50-55 dB (test point distance is 1m)

    Air velocity

    (m3/h)

    0.2-0.5m/s Adjustable (test point distance is 30cm)
    Frame material stainless steel/steel with power coated/Cast aluminum profile
    Wall frame Tempered glass / PVC anti-static curtain (option)
    Fan EBM Fan /Taiwan fan/ Domestic fan (option)
    Power suppler AC110/220v 50HZ/60HZ



  • Customers design is available.

  •

    Cleanroom Project Softwall Modular Cleanrooms For Biological Engineering 0

    Cleanroom Project Softwall Modular Cleanrooms For Biological Engineering 1
