| Name: | Portable Soft Wall Clean Rooms | Material: | Stainless Steel |
|---|---|---|---|
| External Size: | 5000X5000X2596mm | Internal Size: | 4900x4900x2250mm |
| Pressure Gauge: | American Dywer Pressure | Wall: | Tempered Glass |
| High Light: | Laminar Flow Booth,portable clean room |
||

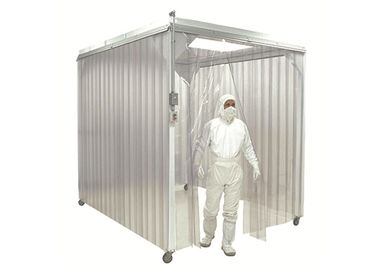

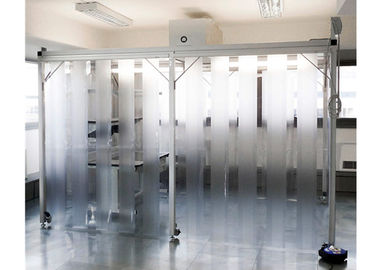

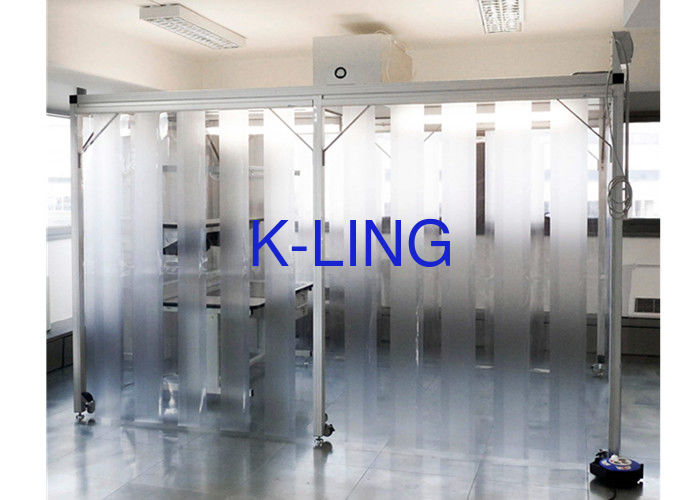

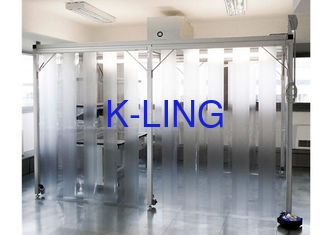

SUS304/SS304 Class 100 Pharmacy Clean Room With PVC Plastic Curtain Wall
CUSTOMIZED DESIGN IS AVAILABLE
Product Description
Advantages of the clean room tent:
Economy - compared to the traditional civil style clean room, the cost is greatly reduced
Efficiency - supply clean vertical airflow, maintaining the clean class level of indoor
Convenience - a standard clean shed (10m*10m) only take a few hours to install, easier disassemble.
Flexibility - bracket type can increase the number of FFU in order to raised clean class level from ten thousand up to one hundred thousand.
Main Features of softwall cleanroom:
(1) Assembly structure design,easy installation and easily moved;
(2) Directional wheels can be installed,suitable for small building and high cleanliness area;
(3) Modular design: clean booth can be as small as several square meters and can be as large as hundreds of square meters
(4) It has large useful and effective area; while compared with traditional clean room, it has such features like low investment, high return and stable.
Application
Sandwich panels has been used as the main steel building palisade materials, widely used in large industrial plants, cold storage, garage, mobile homes,
exhibition hall, gymnasium, shopping centers, airports, power plants, villas, hospitals, office buildings and other fields,
and its excellent insulation performance is mainly used in roof and wall of industrial and civil construction.
Technical Parameter:
| MODEL | KEL-LFB2000 | KEL-LFB3000 | KEL-LFB4000 | KEL-LFB5000 |
|
Ex size (mm) (W*D*H) |
2000X2000X2596 | 3000X3000X2596 | 4000X4000X2596 | 5000X5000X2596 |
| In size (mm) | 1900x1900x2205 | 2900x2900x2205 | 3900x3900x2205 | 4900x4900x2205 |
| Purification rank | Class10-300,000(FS209E USA) | |||
| HEPA filter | Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS) | |||
| Pre-filter | Efficiency : 85% @ 5um | |||
| Control system | PC control system / promised speed by control box | |||
| Pressure Gauge | American Dywer pressure | |||
| Noise | <50-55 dB (test point distance is 1m) | |||
|
Air velocity (m3/h) |
0.2-0.5m/s Adjustable (test point distance is 30cm) | |||
| Frame material | stainless steel/steel with power coated/Cast aluminum profile | |||
| Wall frame | Tempered glass / PVC anti-static curtain (option) | |||
| Fan | EBM Fan /Taiwan fan/ Domestic fan (option) | |||
| Power suppler | AC110/220v 50HZ/60HZ | |||
Customer’s design is available.
Our Service:
1: Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: the follow spare part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
