|Name:||Soft Wall Cleanroom||Material:||PVC Strip|
|External Size:||4000x4000x2596mm||Internal Size:||3900x3900x2250mm|
|Control System:||PC Control System/promised Speed By Control Box||Noise:||<50-55dB|

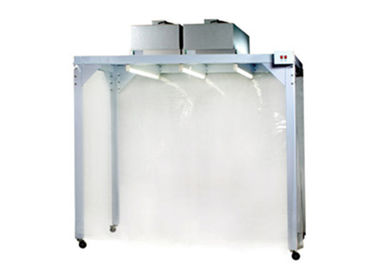

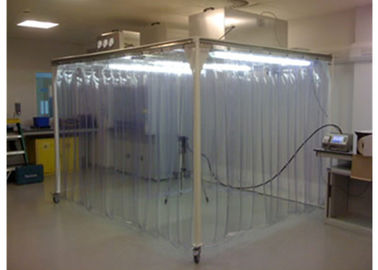

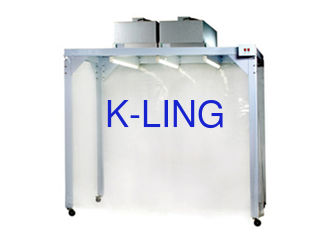

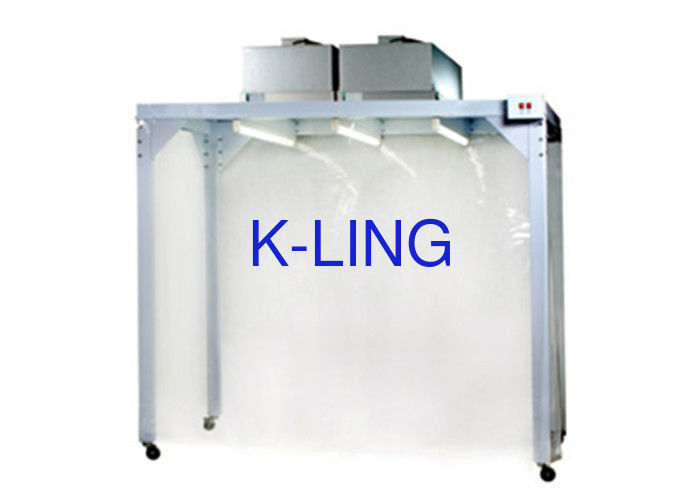

Power Coated Steel Softwall Clean Booth For Material Testing
CUSTOMIZED DESIGN IS AVAILABLE
Clean booth is a special designed room to exclude the particles in the air, bacteria and other harmful air pollutants, and the indoor temperature,
cleanliness, interior pressure, air velocity and air distribution, noise, vibration, and lighting, static control within the scope of a certain demand.
That is no matter how the outside air conditions change, its indoor all can maintain the original set requirements of cleanliness, temperature and humidity and pressure performance characteristic.
FEATURES OF CLEAN ROOM
· Meets ISO 5-8 cleanliness requirements
· Transparent panels allow full visibility into clean room
· Glass tempered for added strength and safety
· All-stainless steel, free-standing frame, including ceiling grid and hardware;
· Materials are non-sloughing, non-outgassing and resist chemical damage
· HEPA or ULPA fan/filter units provide laminar flow of clean air
· Bi-swing door with self-closing hinges to maintain room pressure
· Available in any size or footprint to meet unique floorplan requirements
Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards.
Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--functional test and visual inspection
--electrical safety tests
--air velocity testing
Our equipment is warranty for 2 years excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Ex size (mm)
|In size (mm)||1900x1900x2205||2900x2900x2205||3900x3900x2205||4900x4900x2205|
|Purification rank||Class10-300,000(FS209E USA)|
|HEPA filter||Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS)|
|Pre-filter||Efficiency : 85% @ 5um|
|Control system||PC control system / promised speed by control box|
|Pressure Gauge||American Dywer pressure|
|Noise||<50-55 dB (test point distance is 1m)|
|0.2-0.5m/s Adjustable (test point distance is 30cm)|
|Frame material||stainless steel/steel with power coated/Cast aluminum profile|
|Wall frame||Tempered glass / PVC anti-static curtain (option)|
|Fan||EBM Fan /Taiwan fan/ Domestic fan (option)|
|Power suppler||AC110/220v 50HZ/60HZ|
Customer’s design is available.
