Payment & Shipping Terms:
|Name:||Hepa Fan Filter Unit||External Size:||1175x575x350mm|
|Filter Size:||1170x570x69mm||Fan Power:||123W|
|Air Flow:||1000m³/h||Application:||Cleanroom Project|
Class 100-10000 Cleanroom Equipment Hepa Fan Filter Unit For Hospital
CUSTOMIZED DESIGN IS AVAILABLE

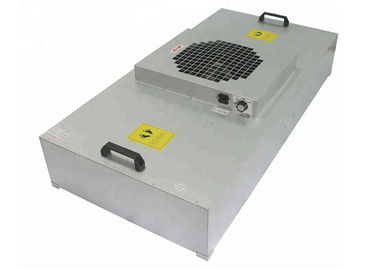

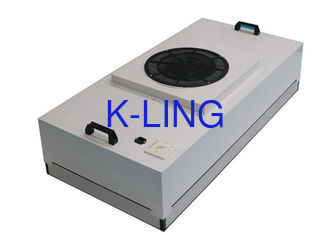

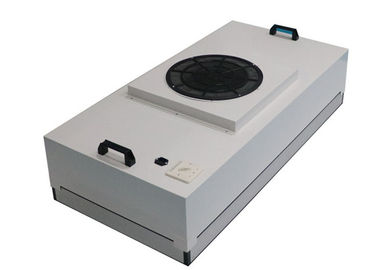

Introduction of Hepa Fan Filter Unit
Fan Filter Unit (FFU) provides the micro-filtered airstream that controls particulate contamination in a cleanroom or laminar flow clean bench.
Our comprehensive line includes models based on High-Efficiency Particulate Air (HEPA) filters, rated 99.99% efficient @ 0.3 μm particles, and Ultra Low Penetration Air (ULPA) filters,
rated 99.999% efficient @ 0.12 μm particles. Select the lights and other ceiling grid accessories to complete your system.
This reliable, self-powered Fan Filter Unit provides a uniform flow of microfiltered air to meet cleanliness standards down to Class 10 (ISO 4).
Feature of Hepa Fan Filter Unit
1.Light, thin shape--Without filter net, thickness of shape is 23cm, 25KG weight, application in low ceiling are also available.
2.Flexible, diversified design--Except for standard items, custom made FFU is available, such changings as filter nets, the materials of shell and etc...
3.Concerning, convenient design---Pedals are designed in the body, which makes it convenient to install and repair.
4.Safe and operation friendly
FFU is able to support high-intensity box and ensures the safety of staff for installation and maintenance.
Remote monitoring and adjustment are available and it is easy to operate.
5.Multi-level protective devices
FFU is equipped with over-current relay, motor protective device, fault indicator and fault signal circuit.
Thermal protector, fuse and motor breaker and such can be applied upon request.
External size (mm)
|Material||Steel plate with painting/galvanized steel/aluminum/stainless steel|
|Air velocity (m/s)||0.3/0.35/0.4/0.45/0.5|
|Control system||1: Power on/off 2: Control air speed up/down|
|Efficiency(%)||99.995% @ 0.3um|
|Pressure (pa)||<220pa @ 0.45m/s|
|Power supply||220V/110V ,50/60HZ|
