|Name:||Softwall Cleanroom FFU||Material:||SS304, SS201,Cold-rolled Plate|
|Air Velocity:||0.3-0.6m/s||Pressure(pa):||97(10mm Aq)|
|Power Supply:||220V/110V||Application:||GMP Workshop|

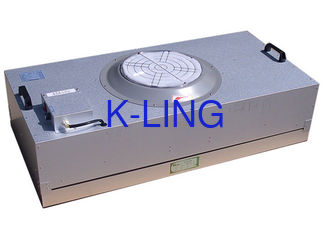

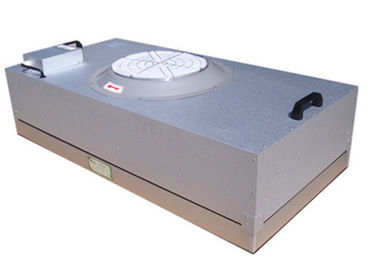

Softwall Cleanroom FFU Air Purifier With EBM Centrifugal Fan
CUSTOMIZED DESIGN IS AVAILABLE
Product Description of Softwall Cleanroom FFU
A fan filter unit (FFU) is a type of motorized air filtering equipment. It is used to supply purified air to clean rooms, laboratories, medical facilities or micro-environments by removing harmful airborne particles from recirculating air.
The units are installed within the system's ceiling or floor grid. Large clean rooms require a proportionally large number of FFU, which in some cases may range from several hundred to several thousand.
Units often contain their own pre-filter, HEPA filter and internally controllable fan air distribution.
Main Features of Softwall Cleanroom FFU
2.The unit appearance is simple and generous
3.Equipped with high quality, high efficiency and low noise outer rotor backward inclined centrifugal blower
4.Optimized internal current sharing designed
5.With stable and multi velocity regulation function
6. Simple direct speed control.
7. Low power consumption.
8. Low sound power level.
9. EC Fan with high reserve capacity for pre- and AMC filtration.
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: the follow spare part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
External size (mm)
|Material||Steel plate with painting/galvanized steel/aluminum/stainless steel|
|Air velocity (m/s)||0.3/0.35/0.4/0.45/0.5|
|Control system||1: Power on/off 2: Control air speed up/down|
|Efficiency(%)||99.995% @ 0.3um|
|Pressure (pa)||<220pa @ 0.45m/s|
|Power supply||220V/110V ,50/60HZ|
Customer’s design is available.
