Product Details:
Payment & Shipping Terms:
|
| Name: | Fan Powered Module | External Size: | 920X615X350mm |
|---|---|---|---|
| Filter Size: | 915X610X69mm | Air Flow: | 900m³/h |
| Noise: | 52dB | Application: | Biological Engineering |
| High Light: | hepa filter unit,duct filter box |
||

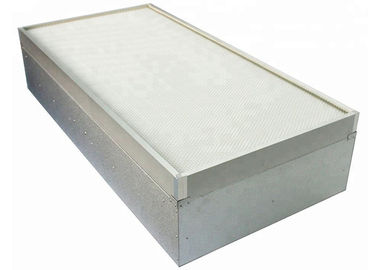

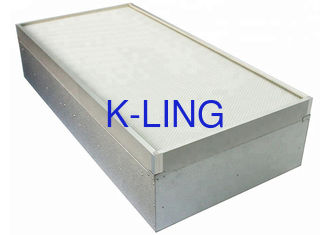

Low Noise DC Motorized Cleanroom Box Filter For Biological Engineering
CUSTOMIZED DESIGN IS AVAILABLE
PRODUCT DESCRIPTION of Cleanroom Box Filter
Fan Filter Units (FFUs) are used in many fields of application in order to reduce the concentration of particles in cleanroom facilities or parts of it.
The fan filter units will be supplied ready for plug-in and are suitable for the use in cleanrooms with turbulent air flows or laminar flows up to class 3 according to DIN EN ISO 14644-1.
They can be installed in any Lindner Reinraumtechnik cleanroom ceilings.

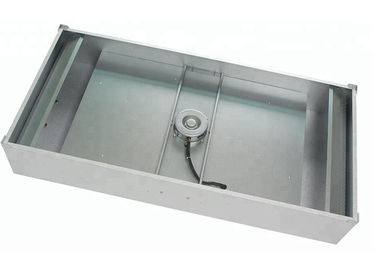

decentralized unit including motor, fan and filter
multiple variants of controls available
can be combined with a heat exchanger
numerous sizes available
very small footprint
all in one solution
Features of Cleanroom Box Filter
1. Low operating cost, convenient use
2. Unique low vibration, low noise
3. Adjustable speed
4. EC Fan with high reserve capacity for pre- and AMC filtration.
5. Very low design height.
6. The degree of cleanness from class 10 to class 1000 can be set and the degree of cleanness can be set at each area.
Advantages of clean room with Fan Filter Unit method
- The degree of cleanliness from class 1 up to 100,000 can be set and it can be set at individual area.
-Because the back in the ceiling is a low-pressure area, the potential of the leakage is extremely low.
-Bay method or through the wall method is possible by the arrangement of layout of FFU.
-The volume of the air flow can be set at each area.
-Flexible increase or change of the clean room is possible by the arrangement of Fan Filter Unit.
Technical Parameter:
| MODEL | KEL-FFU615 | KEL-FFU920 | KEL-FFU1175 | KEL-FFU1225 | |
|
External size (mm) (WXDXH) |
615X615X350 | 920x615x350 | 1175x575x350 | 1225X615X350 | |
| Material | Steel plate with painting/galvanized steel/aluminum/stainless steel | ||||
| Air flow(m3/h) | 600 | 800 | 1000 | 1200 | |
| Air velocity (m/s) | 0.3/0.35/0.4/0.45/0.5 | ||||
| Pressure(pa) | 97(10mmAq) | ||||
| Control system | 1: Power on/off 2: Control air speed up/down | ||||
| HEPA FILTER | Size(mm) | 610X610X69 | 915X610X69 | 1170x570x69 | 1220x610x69 |
| Efficiency(%) | 99.995% @ 0.3um | ||||
| Pressure (pa) | <220pa @ 0.45m/s | ||||
| Power supply | 220V/110V ,50/60HZ | ||||
| Power (w) | 115w | 115w | 123w | 172w | |
| Noise (Db) | 57 | 57 | 57 | 57 | |
