With EBM Centrifugal Fan Cleanroom Fan Filter Unit For GMP Workshop
CUSTOMIZED DESIGN IS AVAILABLE

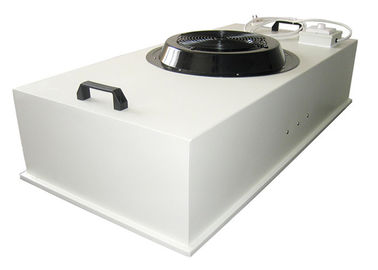

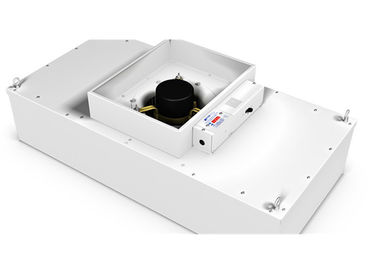

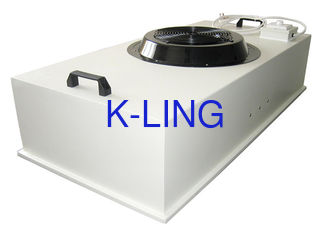

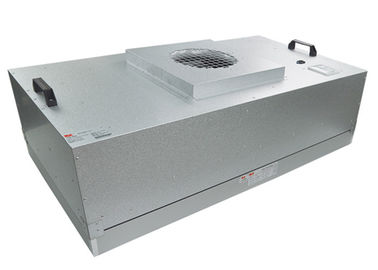

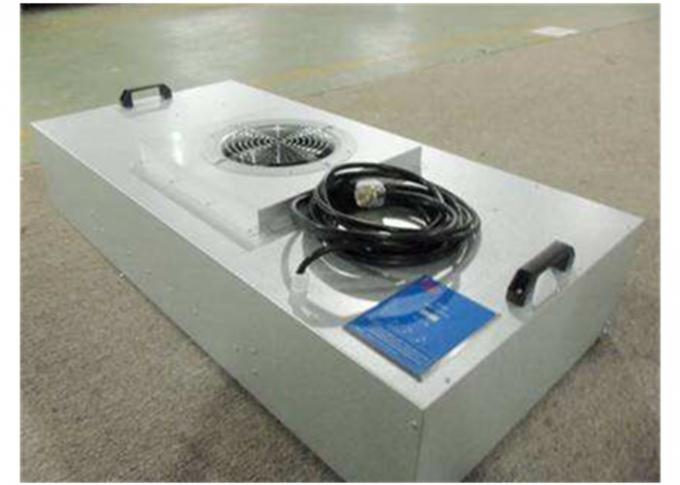

Fan Filter Unit Met-Air Fan Filter Unit is designed to provide filtered Laminar Air flow over a specified area. The Unit consists of a high efficiency fan together with pre and HEPA Filter. The contaminated air from the room is drawn through the pre and HEPA Filter placed inside the Fan filter unit and exhausts filtered clean air in alaminar air stream at its base.
Technical Specifications:Overall size : 1220 x 610 x 435 mm Pre-Filter : G3 Grade Housing : 1.6 mm thick CRCA duly powder coated Power Source : 230 V, Single phase Control : Variable speed control HEPA Filter : Minipleat HEPA Filter,H14 Grade, 99.995% on MPPS Average face velocity : 0.45 m/sec Airflow : 1200 cmh Noise level : < 60 dBA
Features of Cleanroom Fan Filter Unit
Feature 1 : Industry highest energy-saving motor
The brushless DC motor having superior efficiency in comparison with the induction motor is adopted as standard. Industry highest energy saving performance has been materialized.
Feature 2 : Airfoil high efficiency fan
The waterwheel designing know-how of the hydro power generation engineering, our traditional business field, is applied to fan designing. By adopting the airfoil section in the fan shape, the efficiency has been improved.
Feature 3 : Adjustable airflow to the optimum
By using our core technology, power electronics technology, highly accurate speed control becomes possible. You can set the optimum airflow for your use environment. The large airflow type of the industry highest class is also included in our lineups.
Feature 4 : Surprising quietness
The lowest level of noise in the class has been materialized by implementing the inlet of the fan making smooth flow and the rectifier structure in the unit. The system does not affect to the surrounding environment with the design considering prevention of vibration.
External size (mm)
||Steel plate with painting/galvanized steel/aluminum/stainless steel
|Air velocity (m/s)
||1: Power on/off 2: Control air speed up/down
||99.995% @ 0.3um
||<220pa @ 0.45m/s
Customer’s design is available.
