Product Details:
Payment & Shipping Terms:
|
| Name: | Large Air Volume Fan Filter Unit | External Size: | 1225X615X350mm |
|---|---|---|---|
| Filter Size: | 1220X610X69mm | Control System: | 1. Power On/off 2. Control Speed UP/Down |
| Fan Poiwer: | 175W | Application: | Pharmaceutical Industry |
| High Light: | hepa filter unit,duct filter box |
||

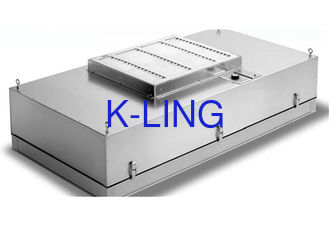

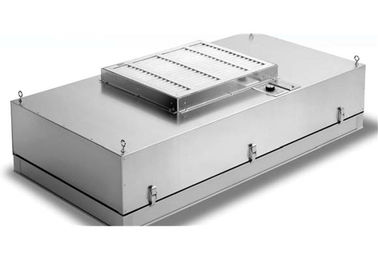

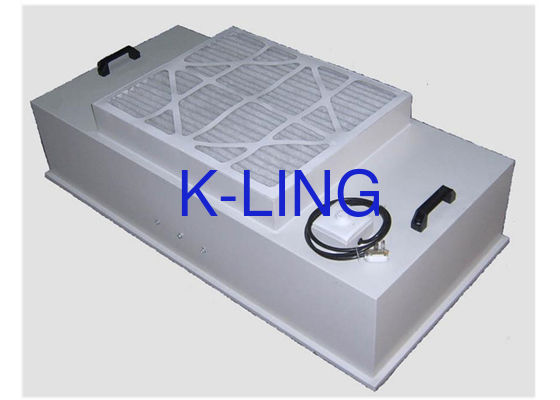

Motorized Fan Filter Unit H13 Clean Room Equipment For Chemical
CUSTOMIZED DESIGN IS AVAILABLE
Cleanroom Fan Filter Units:
Fan Filter Unit
Clean Air Products’ cleanroom fan filter units are self-contained devices that utilize HEPA or ULPA filters.
We offer a full line of standard and custom fan filter units, with numerous options available to meet your specific cleanroom requirements.
Request a quote on the clean room fan filter you need, or contact Clean Air Products for more information.
Laminar Flow KEL-FFU is a terminal filter hood designed for use in pharmaceutical and biotech cleanrooms, and other applications where hoods are regularly validated for performance and leak-free operation.
It offers easy installation in all types of ceilings including plaster, T-bar, and gel-seal grid systems.
Ideal for Class 100 applications, the FM-IV can also be utilized to create Class 10,000 to Class 100,000 areas depending upon the number of units installed. 100% ceiling coverage with the units will achieve cleanliness levels to Class 10.
Features
High Energy Efficiency
High Airflow Capacity
Versatile Motor Programs
Seismic Certification Preapproval
Quick and Easy Commissioning via Aerosol Challenge
Instant Filter and Motor Status Indication
Complete Control and Monitoring via BACnet
Advantages of clean room with Fan Filter Unit method
- The degree of cleanliness from class 1 up to 100,000 can be set and it can be set at individual area.
-Because the back in the ceiling is a low-pressure area, the potential of the leakage is extremely low.
-Bay method or through the wall method is possible by the arrangement of layout of FFU.
-The volume of the air flow can be set at each area.
-Flexible increase or change of the clean room is possible by the arrangement of Fan Filter Unit.
Specification:
| MODEL | KEL-FFU615 | KEL-FFU920 | KEL-FFU1175 | KEL-FFU1225 | |
|
External size (mm) (WXDXH) |
615X615X350 | 920x615x350 | 1175x575x350 | 1225X615X350 | |
| Material | Steel plate with painting/galvanized steel/aluminum/stainless steel | ||||
| Air flow(m3/h) | 600 | 800 | 1000 | 1200 | |
| Air velocity (m/s) | 0.3/0.35/0.4/0.45/0.5 | ||||
| Pressure(pa) | 97(10mmAq) | ||||
| Control system | 1: Power on/off 2: Control air speed up/down | ||||
| HEPA FILTER | Size(mm) | 610X610X69 | 915X610X69 | 1170x570x69 | 1220x610x69 |
| Efficiency(%) | 99.995% @ 0.3um | ||||
| Pressure (pa) | <220pa @ 0.45m/s | ||||
| Power supply | 220V/110V ,50/60HZ | ||||
| Power (w) | 115w | 115w | 123w | 172w | |
| Noise (Db) | 57 | 57 | 57 | 57 | |
Customer’s design is available.
