| Name: | Hepa Filter FFU Air Purifier | External Size: | 1175X575X350mm |
|---|---|---|---|
| Filter Size: | 1170X570X69mm | Filter Efficiency: | 99.99%@0.3um |
| Noise: | 52 DB | Application: | Food Workshop |
| High Light: | hepa filter unit,duct filter box |
||

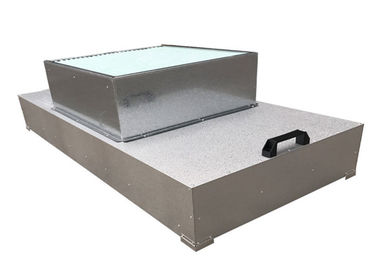

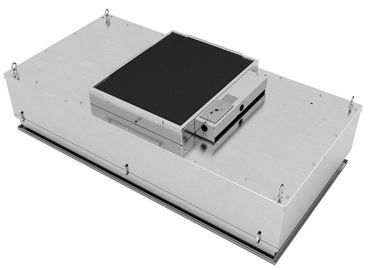

Class 100-10000 Cleanroom Fan Filter Unit With EBM Fan Motorized
CUSTOMIZED DESIGN IS AVAILABLE
Overview of Cleanroom Fan Filter Unit
KELING Fan Filter Units (FFU) are the most energy efficient line of fan filter units (fan filter modules) on the market today.
Designed specifically for use in cleanrooms, pharmacies, pharmaceutical manufacturing facilities and laboratories,
the FFU delivers high volumes of HEPA (or ULPA) filtered air at low sound levels while reducing energy consumption by 15 to 50% versus comparable products.
Features of Cleanroom Fan Filter Unit
High Energy Efficiency
High Airflow Capacity
Versatile Motor Programs
Seismic Certification Preapproval
Quick and Easy Commissioning via Aerosol Challenge
Instant Filter and Motor Status Indication
Complete Control and Monitoring via BACnet
Applications
- Fan Filter Unit (FFU) is air cleaning equipment to supply purified air to the clean room for manufacturing photo-electronics,
semi-conductor, liquid crystal, etc.
- The installation space is the system ceiling grid.
- For a large clean room, the number of required FFU is from several hundreds to several thousands.
- We developed DEVISER Fan Filter Unit(FFU)basing upon the concepts including, to reduce running cost by saving energy, and to reduce initial cost by total design of clean room; such as noise specifications etc., to meet all the requirements for constructing, operating, and maintaining clean rooms.
- ustom thin & Mini type of Fan Filter Unit is available for your requirements.
Product Specification:
| MODEL | KEL-FFU615 | KEL-FFU920 | KEL-FFU1175 | KEL-FFU1225 | |
|
External size (mm) (WXDXH) |
615X615X350 | 920x615x350 | 1175x575x350 | 1225X615X350 | |
| Material | Steel plate with painting/galvanized steel/aluminum/stainless steel | ||||
| Air flow(m3/h) | 600 | 800 | 1000 | 1200 | |
| Air velocity (m/s) | 0.3/0.35/0.4/0.45/0.5 | ||||
| Pressure(pa) | 97(10mmAq) | ||||
| Control system | 1: Power on/off 2: Control air speed up/down | ||||
| HEPA FILTER | Size(mm) | 610X610X69 | 915X610X69 | 1170x570x69 | 1220x610x69 |
| Efficiency(%) | 99.995% @ 0.3um | ||||
| Pressure (pa) | <220pa @ 0.45m/s | ||||
| Power supply | 220V/110V ,50/60HZ | ||||
| Power (w) | 115w | 115w | 123w | 172w | |
| Noise (Db) | 57 | 57 | 57 | 57 | |
Customer’s design is available.
