|Name:||Clean Room FFU Air Purifier||External Size:||1175X575X350mm|
|Filter Size:||1170X570X69mm||Air Flow:||1000m³/h|
|Pressure(pa):||97(10mm Aq)||Hepa Filter Pressure:||email@example.com/s|

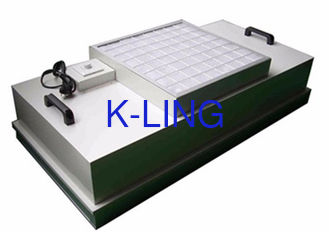

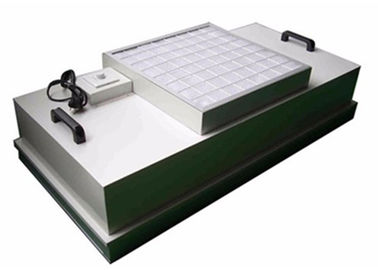

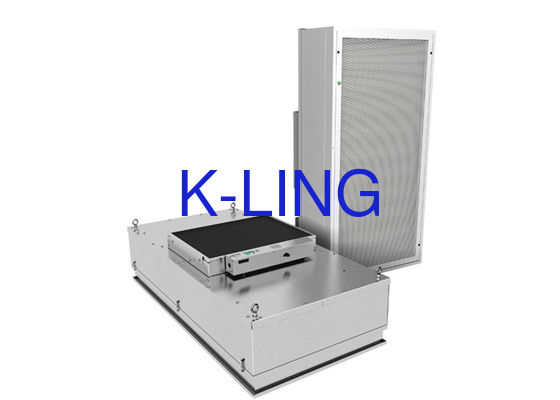

SUS304 Cleanroom Ceiling Fan Filter Units With Hepa Filter H14
CUSTOMIZED DESIGN IS AVAILABLE
We produces the head fan filter unit, which takes the domestic newest technology, suitable for 100, 000-1000 magnitude environment and obtain the highest grade of clean environment 100.
It is different for different size, cleanliness level of clean room microenvironment, clean bench, clean production, the assembly type clean room and laminar covers and other applications high-tech and humanization of computer software system system, the head of 7905 up,
also can design according to clients’ requirements for additional monitoring system. Particularly suited to assemble line, can be formed many series of 100 level assembly line.
1. Low operating cost, convenient use
2. Unique low vibration, low noise
3. Adjustable speed
4. Fan box and filter fission, easy replacement
5 Materials and operating conditions
External frame: stainless steel or cold-rolled plate with spray
Fan: low vibration, low noise, imported or domestically fan
Wind speed: 0.4-0.8m/s
Purification at the highest level: 100 levels
Media: domestic glass fiber filter proposed or HV filter paper
System control mode: AC and DC
Maximum operating temp. and humidity: 80℃,80%
Flexible and economical modular solution to equip turbulent clean rooms from ISO 8 to ISO 1 with very low space above the false ceiling.
Semiconductor, electronics, flat-panel displays, disc-drive, manufacturers and optics, bio-engineering, clean lines, clean bench, clean room ,laminar flow hood ,etc.
External size (mm)
|Material||Steel plate with painting/galvanized steel/aluminum/stainless steel|
|Air velocity (m/s)||0.3/0.35/0.4/0.45/0.5|
|Control system||1: Power on/off 2: Control air speed up/down|
|Efficiency(%)||99.995% @ 0.3um|
|Pressure (pa)||<220pa @ 0.45m/s|
|Power supply||220V/110V ,50/60HZ|
Customer’s design is available.
