Product Details:
Payment & Shipping Terms:
|
| Name: | Fan Filter Units | Material: | Steel With Power Coated |
|---|---|---|---|
| External Size: | 920X615X350mm | Air Velocity: | 0.3-0.6m/s |
| Fan Power: | 123W | Application: | Cleanroom |
| High Light: | hepa filter unit,duct filter box |
||

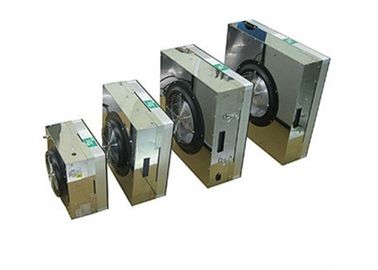

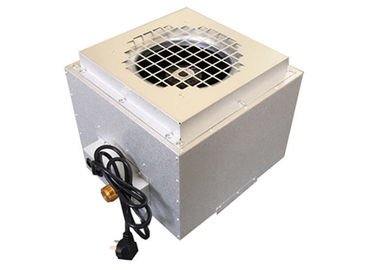

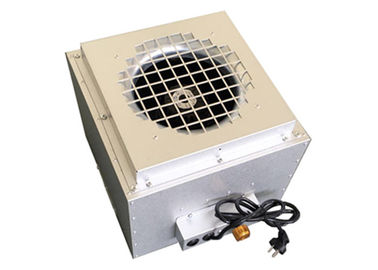

Softwall Cleanroom Ceiling Fan Filter Units H13/H14 With EBM Fan
CUSTOMIZED DESIGN IS AVAILABLE
Product Description of FFU
FFU is air cleaning equipment to supply purified air to the clean room for manufacturing semiconductor, liquid crystal, etc.
The installation space is the system ceiling grid. For a large clean room, the number of required FFU is from several hundreds to several thousands.
Advantages of FFU
1. Simple direct speed control.
2. Low power consumption.
3. Low sound power level.
4. EC Fan with high reserve capacity for pre- and AMC filtration.
5. Very low design height.
6. The degree of cleanness from class 10 to class 1000 can be set and the degree of cleanness can be set at each area.
Application of FFU
Flexible and economical modular solution to equip turbulent clean rooms from ISO 8 to ISO 1 with very low space above the false ceiling.
Semiconductor, electronics, flat-panel displays, disc-drive, manufacturers and optics, bio-engineering, clean lines, clean bench, clean room ,laminar flow hood ,etc.
Company Information
Our factory with competitive price
Automatic production line.
Nearly 20 years experience in cleanroom industry.
We are an expert in providing customized solutions.
Timely delivery with perfect quality.
Fortune 500 companies’ choice.
Have passed ISO9001.2008 certification.
Specifications:
| MODEL | KEL-FFU615 | KEL-FFU920 | KEL-FFU1175 | KEL-FFU1225 | |
|
External size (mm) (WXDXH) |
615X615X350 | 920x615x350 | 1175x575x350 | 1225X615X350 | |
| Material | Steel plate with painting/galvanized steel/aluminum/stainless steel | ||||
| Air flow(m3/h) | 600 | 800 | 1000 | 1200 | |
| Air velocity (m/s) | 0.3/0.35/0.4/0.45/0.5 | ||||
| Pressure(pa) | 97(10mmAq) | ||||
| Control system | 1: Power on/off 2: Control air speed up/down | ||||
| HEPA FILTER | Size(mm) | 610X610X69 | 915X610X69 | 1170x570x69 | 1220x610x69 |
| Efficiency(%) | 99.995% @ 0.3um | ||||
| Pressure (pa) | <220pa @ 0.45m/s | ||||
| Power supply | 220V/110V ,50/60HZ | ||||
| Power (w) | 115w | 115w | 123w | 172w | |
| Noise (Db) | 57 | 57 | 57 | 57 | |
Our Service:
1: Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: the follow spare part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
