KeLing Purification Technology Company Limited
-------------------------------------------------------------
Advanced. High-Qulity. Reasonable.
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Name: | FFU | Material: | SS304,SUS201 |
|---|---|---|---|
| Air Flow: | 600m³/h | Filter Size: | 610X610X69mm |
| Efficiency: | 99.99%@0.3um | Application: | LAB |
| High Light: | air filter box,duct filter box |
||

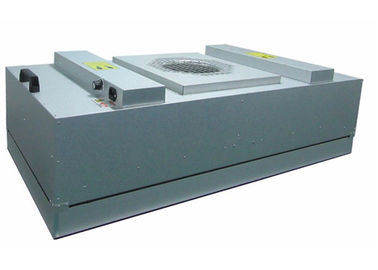

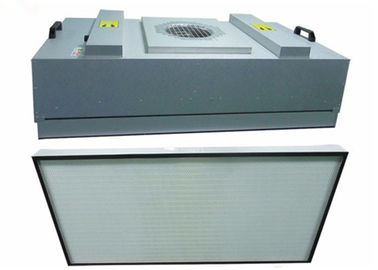

Class 100-10000 Cleanroom FFU Manufacturers For Pharmaceutical Industry
CUSTOMIZED DESIGN IS AVAILABLE
Product Information:
FFU is generation set with motor inside which is used in the turbulent layer and laminar flow clean room. It has characteristic of continuous use. The air flow can reach 0.45mm/s±20%.
Product Feature:
Long-lift span, low noise, maintenance-free, small vibration, and adjustable speed, It can control thousand unit together.
Strict monitoring
It is tested according to the standard of ISO14644-1 before package.
Applications
Semiconductor, electronics, flat-panel displays, disc-drive, manufacturers and optics, bio-engineering, clean lines, clean bench, clean room ,laminar flow hood ,etc.
OEM
Customized design is available.
Features :
Nice appearance , human centered design--Adding stainless handle, easy installation and delivery, and perpendicular design.
High performance and low noise fans--Adopting Energy-saving Multi-blade turbine fan, lower noise, Pressure spreads evenly, stable air velocity, low consumption, low running cost, service life can reach to longer than 80 thousand hours.
Light, thin shape--Without filter net, thickness of shape is 23cm, 25KG weight, application in low ceiling are also available.
Flexible, diversified design--Except for standard items, custom made FFU is available, such changings as filter nets, the materials of shell and etc...
Concerning, convenient design---Pedals are designed in the body, which makes it convenient to install and repair.
Premium Current-averaging design of the inside--Ensures deviation of the blowing side lower than ±10%.
Product Specifications:
| MODEL | KEL-FFU615 | KEL-FFU920 | KEL-FFU1175 | KEL-FFU1225 | |
|
External size (mm) (WXDXH) |
615X615X350 | 920x615x350 | 1175x575x350 | 1225X615X350 | |
| Material | Steel plate with painting/galvanized steel/aluminum/stainless steel | ||||
| Air flow(m3/h) | 600 | 800 | 1000 | 1200 | |
| Air velocity (m/s) | 0.3/0.35/0.4/0.45/0.5 | ||||
| Pressure(pa) | 97(10mmAq) | ||||
| Control system | 1: Power on/off 2: Control air speed up/down | ||||
| HEPA FILTER | Size(mm) | 610X610X69 | 915X610X69 | 1170x570x69 | 1220x610x69 |
| Efficiency(%) | 99.995% @ 0.3um | ||||
| Pressure (pa) | <220pa @ 0.45m/s | ||||
| Power supply | 220V/110V ,50/60HZ | ||||
| Power (w) | 115w | 115w | 123w | 172w | |
| Noise (Db) | 57 | 57 | 57 | 57 | |
Customer’s design is available.
